OVERVIEW

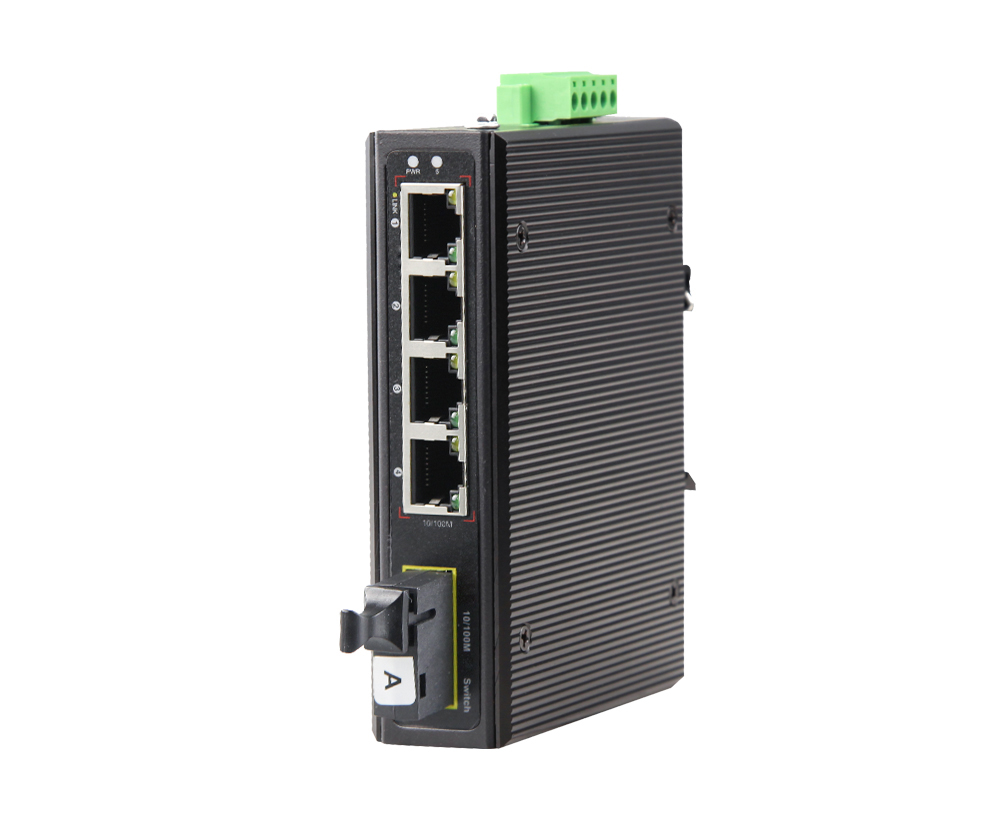

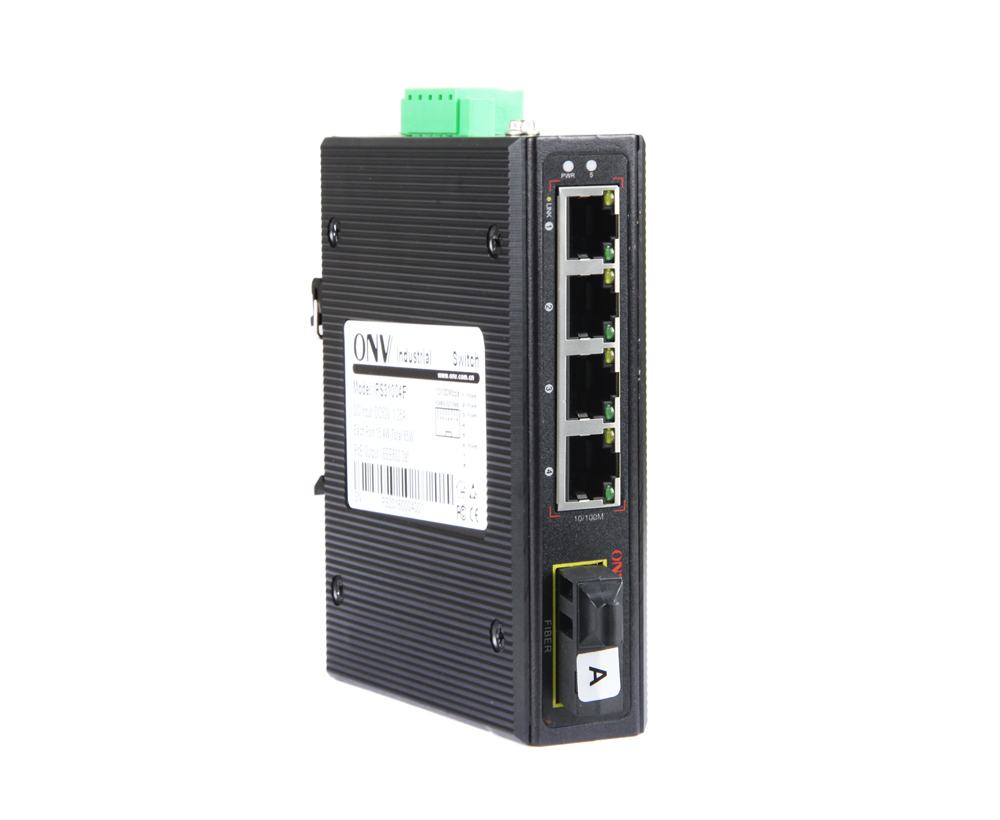

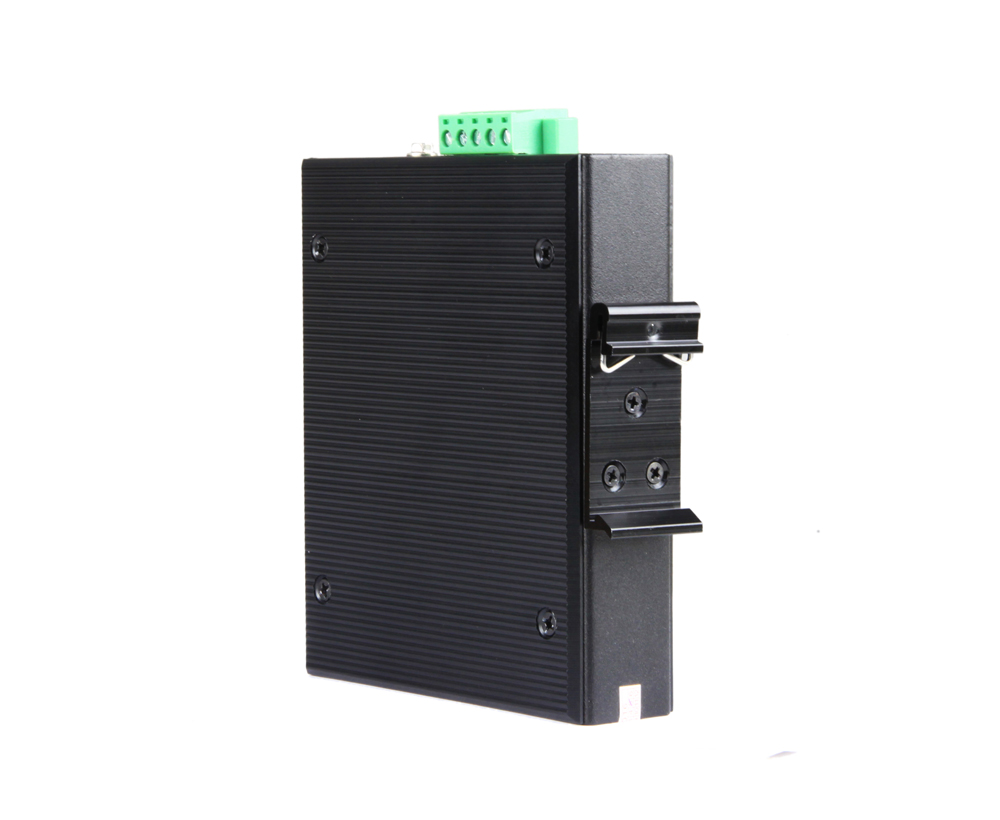

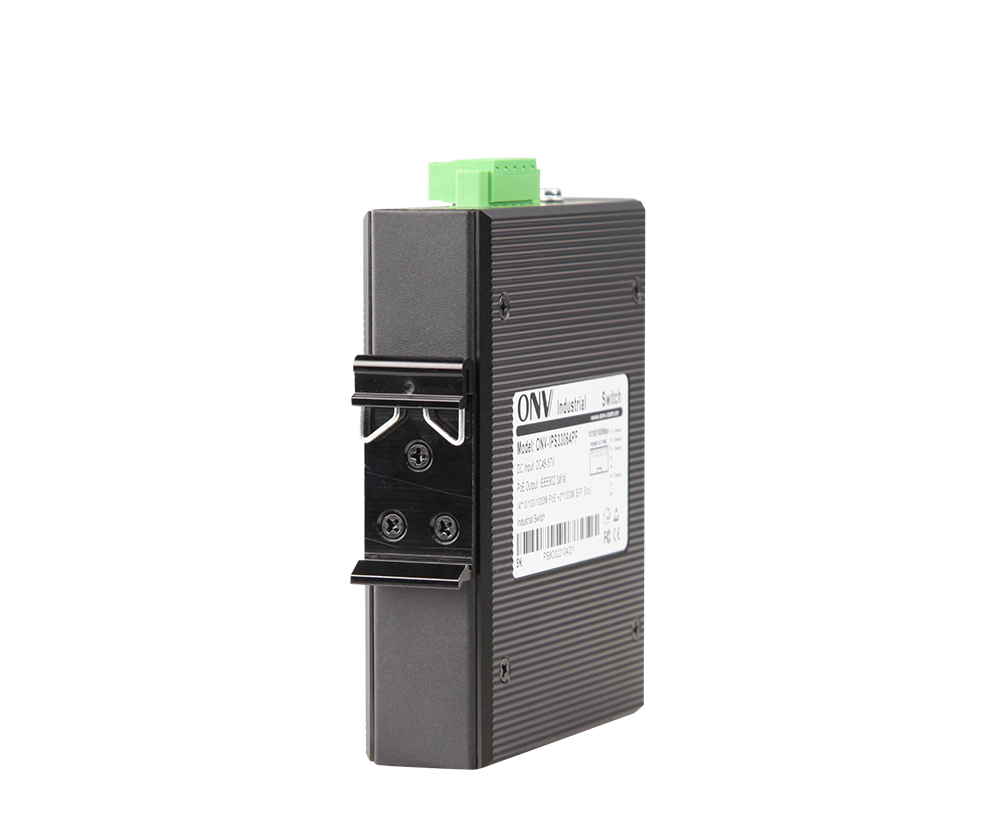

The ONV-IPS31004F is a 10/100M industrial Ethernet fiber switch independently developed by ONV. It has 4*10/100M adaptive RJ45 ports and 1*155M SC fiber port. Each port can support full line-rate forwarding.
The ONV-IPS31004F has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.). Unmanaged mode, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to form a cost-effective, stable, and reliable communication network.
FEATURE
10/100M access, fast Ethernet
◇ Support non-blocking wire speed forwarding
◇ Support full duplex based on IEEE802.3x and half duplex based on Backpressure
◇ Support 10/100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR and Link.
◇ Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.

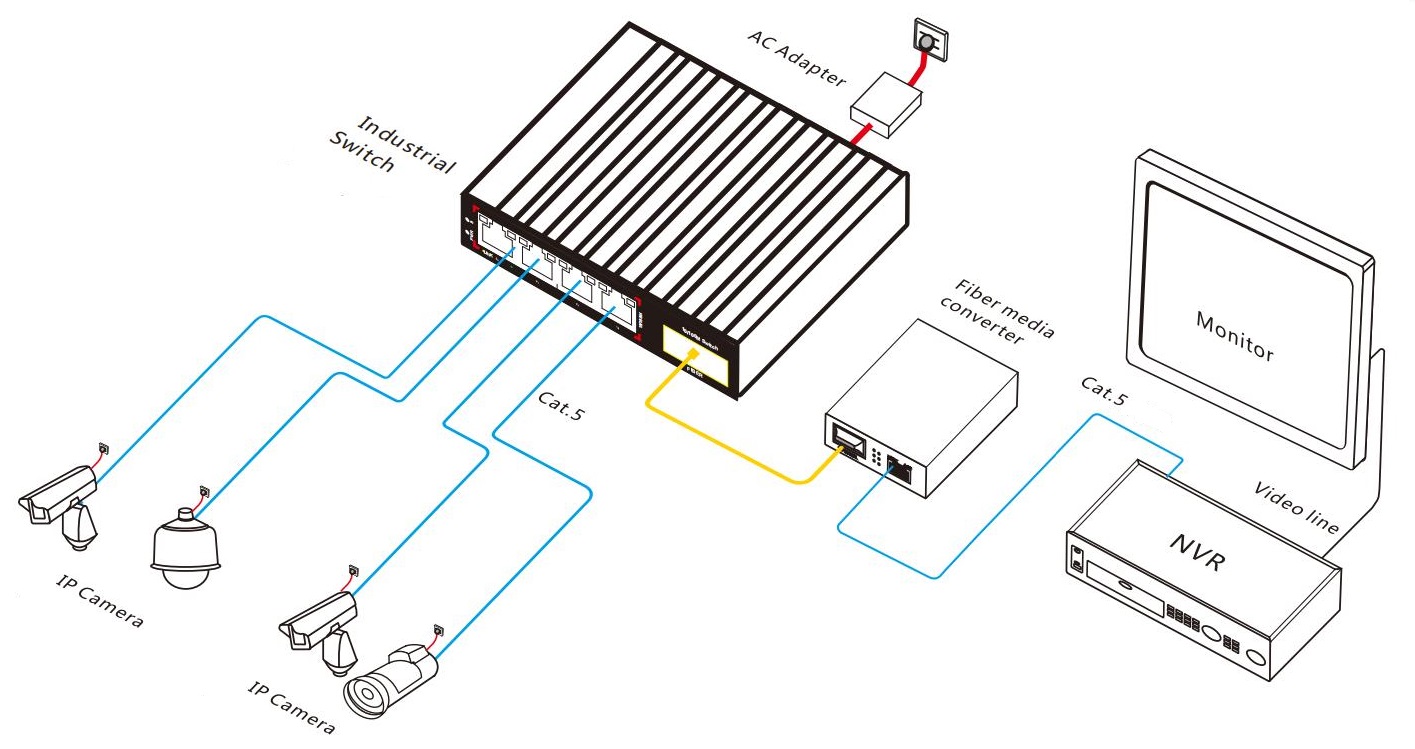

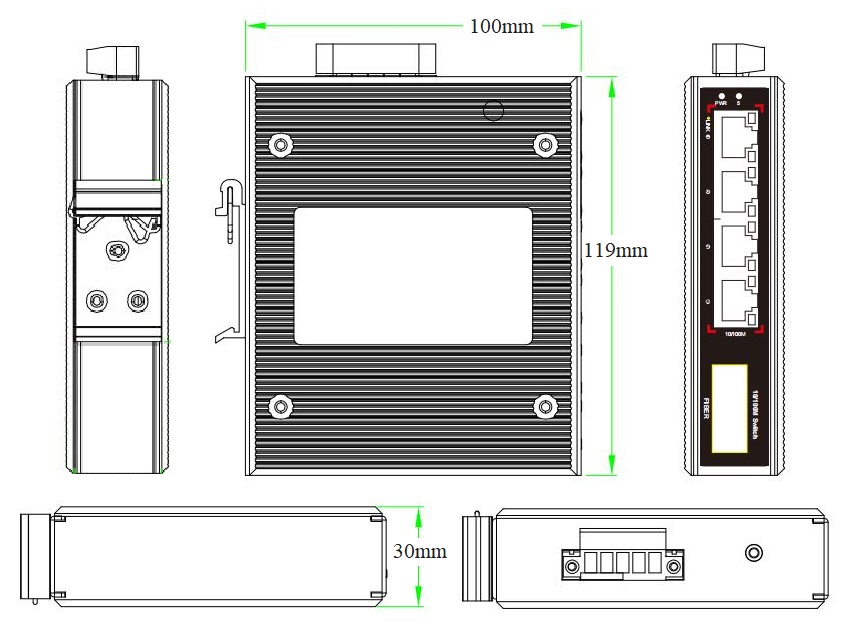

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS31004F |
Unmanaged industrial Ethernet switch with 4*10/100M RJ45 ports and 1*155M uplink SC fiber port (1310nm /20km single-mode dual fiber optical module). It can support dual DC power input and DIN rail mounting. |
12W/24W |
|
ONV-IPS31004F-M |
Unmanaged industrial Ethernet switch with 4*10/100M RJ45 ports and 1*155M uplink SC fiber port (850nm /0.5km or 1310nm /2km multi-mode dual fiber optical module). It can support dual DC power input and DIN rail mounting. |
12W/24W |
|
ONV-IPS31004F-A |
Unmanaged industrial Ethernet switch with 4*10/100M RJ45 ports and 1*155M uplink SC fiber port (1310nm /20km single-mode single fiber optical module). It can support dual DC power input and DIN rail mounting. |
12W/24W |
|
ONV-IPS31004F-B |
Unmanaged industrial Ethernet switch with 4*10/100M RJ45 ports and 1*155M uplink SC fiber port (1550nm /20km single-mode single fiber optical module). It can support dual DC power input and DIN rail mounting. |
12W/24W |
|
Note: The power supply is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
5-port 10/100M industrial Ethernet fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
12W DIN Rail Industrial Power Supply |
GWS-DP12-12 |
DIN Rail 12W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.35A Output Voltage: DC12V, 1.0A Operation Temperature: -40℃ to +70℃ |
PC |
|
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
DIN Rail 24W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.35A Output Voltage: DC24V, 1.0A Operation Temperature: -40℃ to +70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33032FS |
Unmanaged industrial Ethernet fiber switch with 2*10/100/1000M RJ45 ports and 1*1000M uplink SC fiber port. It can support dual DC power input and DIN rail mounting. |
|
ONV-IPS33042F |
Unmanaged industrial Ethernet fiber switch with 2*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. It can support dual DC power input and DIN rail mounting. |
|
ONV-IPS33064F |
Unmanaged industrial Ethernet fiber switch with 4*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. It can support dual DC power input and DIN rail mounting. |
|
ONV-IPS33108F |
Unmanaged industrial Ethernet fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. It can support dual DC power input and DIN rail mounting. |
|
ONV-IPS33128F |
Unmanaged industrial Ethernet fiber switch with 10*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. It can support dual DC power input and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS31004F |
|
Interface Characteristics |
|
|
Fixed Port |
1*155M uplink SC fiber port (Data) 4*10/100Base-TX RJ45 ports (Data /Power) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal) |
|
Ethernet Port |
Port 1-4 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Default optical module is single-mode dual fiber 20km, SC port (optional single-mode single fiber and multi-mode dual fiber optical module) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, 1310nm /0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
1.6Gbps (non-blocking) |
|
Forwarding Rate @64byte |
0.744Mpps |
|
MAC |
1K |
|
Buffer Memory |
768K |
|
Jumbo Frames |
9.2K |
|
LED Indicator |
Power: PWR(Green), Network: Link (Yellow), Fiber port: L/A (Green) |
|
Power Supply |
|
|
Power Consumption |
Standby<3W, Full load<6W |
|
Power Supply |
No, optional 24V/24W industrial power supply |
|
Working Voltage |
DC12-48V, 5P industrial Phoenix terminal, support anti-reverse protection. |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+80°C, 5%~90% RH Non-condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non-condensing |
|
Dimension |
119*100*30mm |
|
Net /Gross Weight |
0.4kg /0.5kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
