Гигабитный 3-портовый одномодовый двухволоконный медиаконвертер-Конвертер оптического волокна

Гигабитный 3-портовый одномодовый двухволоконный медиаконвертер

Модель： ONV1110-SCX-S2

Конвертер средств массовой информации волокна гигабита одномодовый двойной с 2*10/100/1000М порт волокна портов РДЖ 45 и СК 1*1,25 Г. 1310 нм/0-20 км. Общая мощность 5 Вт. Внешний источник питания.

Я хочу сделать запрос

Обзор
Техническая спецификация
Применение
Документы
Сопутствующие товары

OVERVIEW

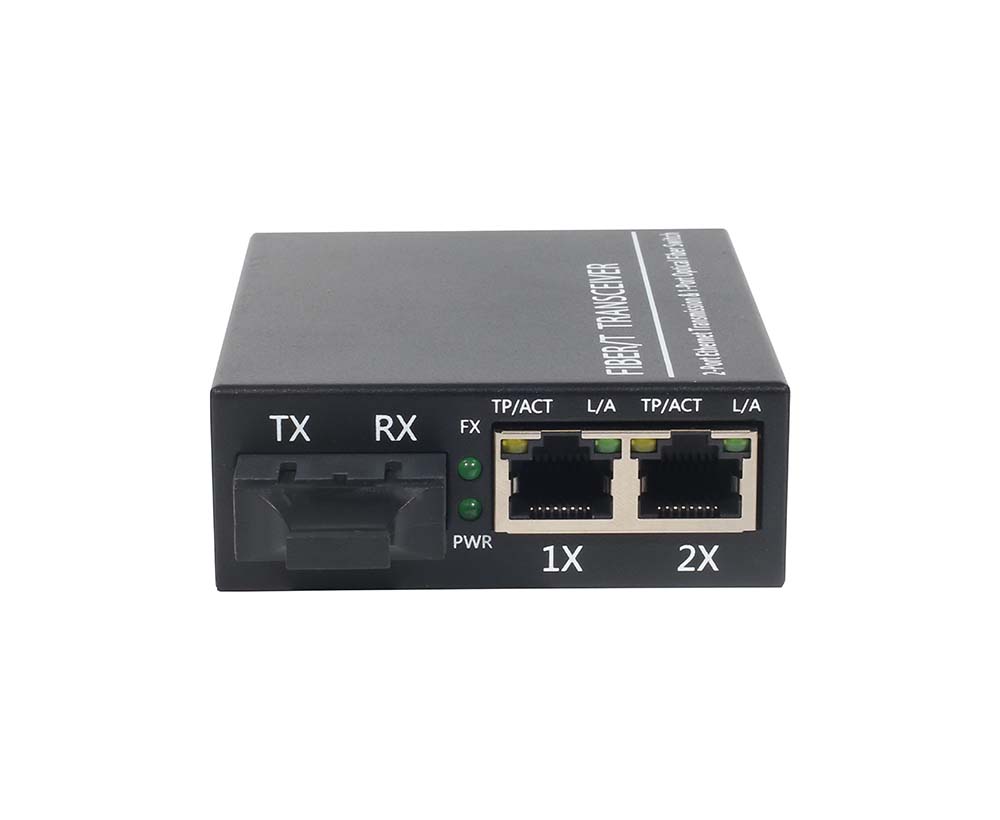

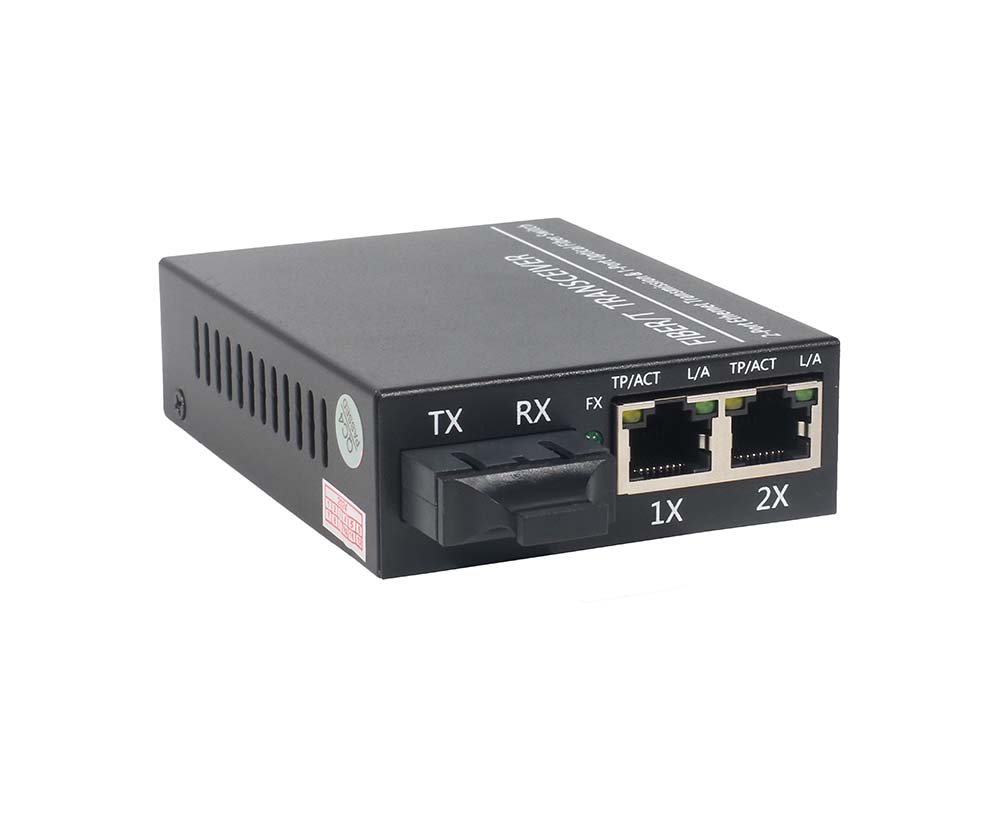

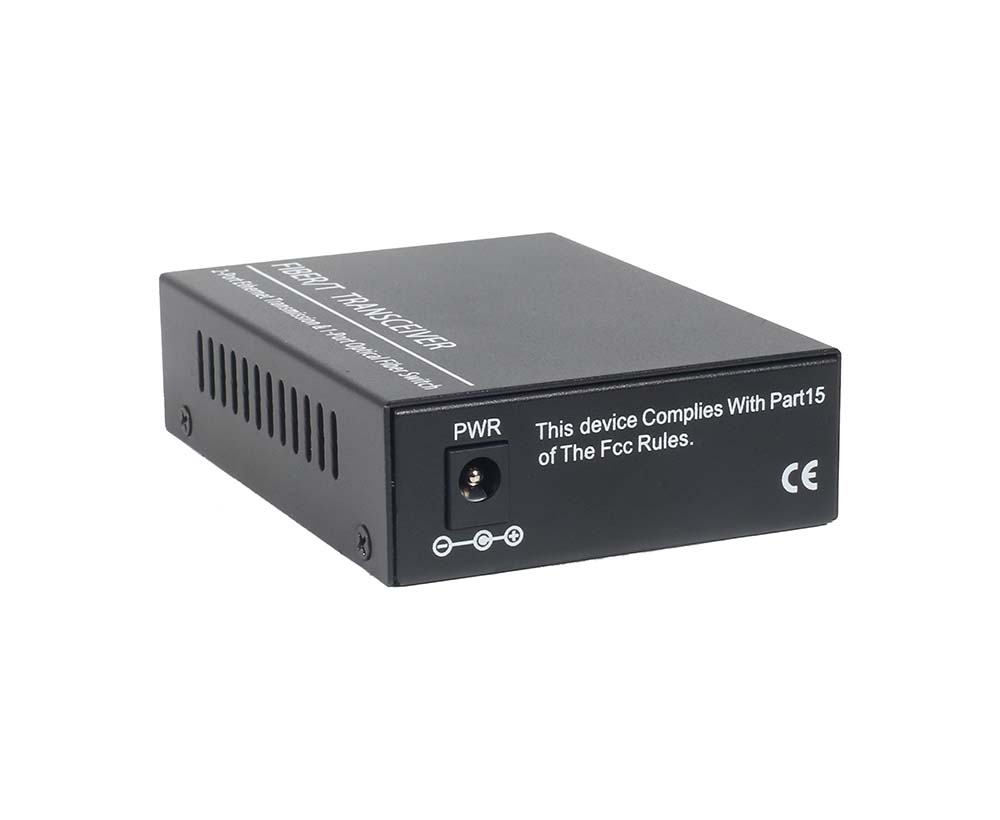

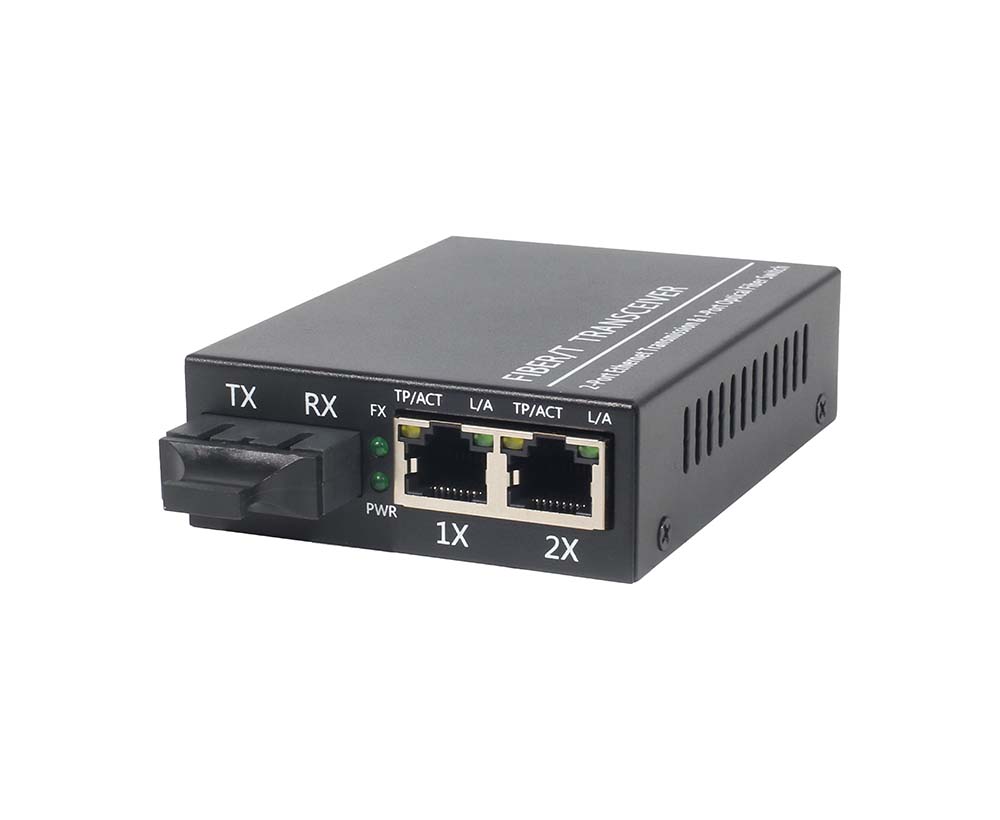

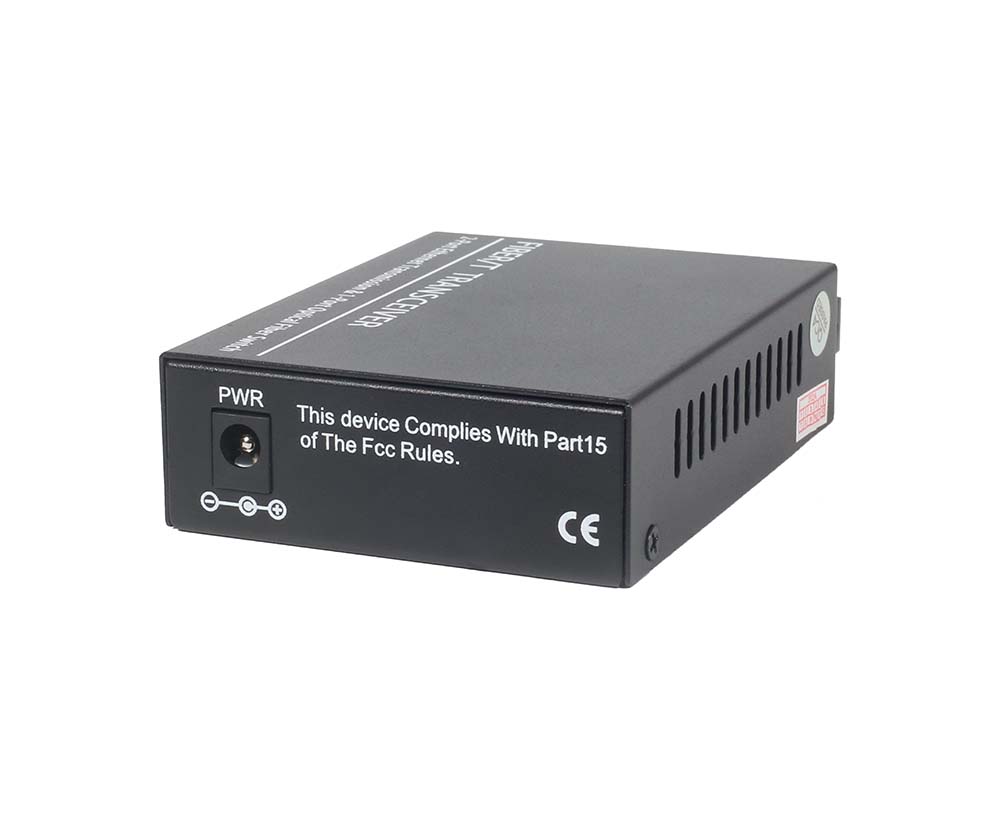

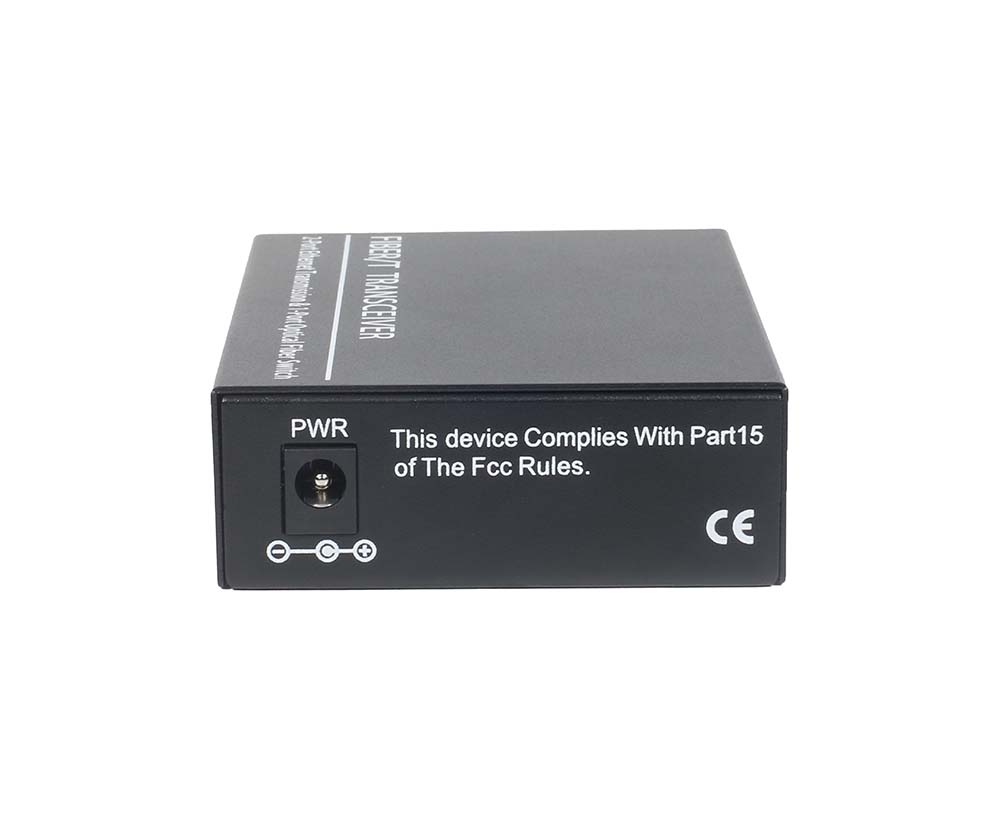

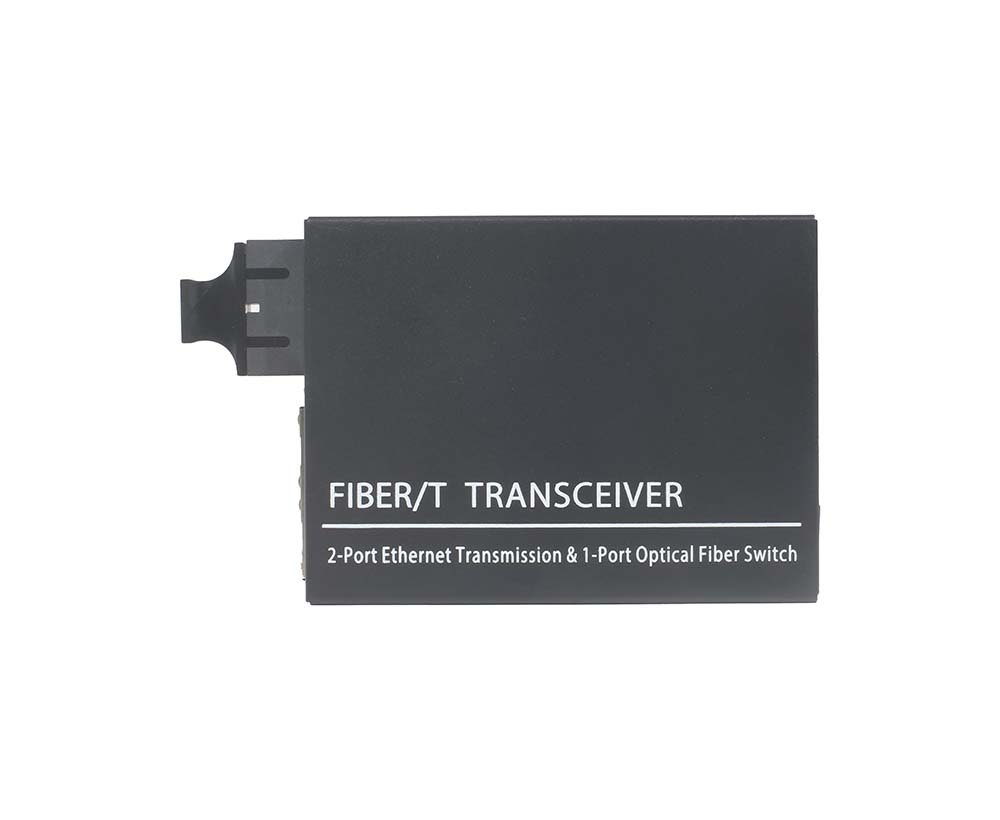

The ONV1110-SCX-S2 is a Gigabit fiber media converter independently developed by ONV. It has 2*10/100/1000Base-T RJ45 ports and 1*1.25G uplink SC fiber port. Users can select different optical modules, such as multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Realtek carrier-grade chip solution, which has stable performance, good quality, and high-cost performance. It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, smart transportation, and safe cities to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit photoelectric Ethernet conversion transmission

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Support Gigabit RJ45 port and SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Easy to use

◇ Support full-duplex/half-duplex working mode with auto-negotiation function.

◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.

◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.

◇ Plug and play, no configuration, centralized power supply, and centralized connection management through 2U-14 slot rack.

◇ Compatible with IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X network protocol, gigabit R45 port rate auto-negotiation.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Low power consumption, No fan, galvanized steel housing, and excellent heat dissipation ensure stable operation of the product.

ORDERING INFORMATION

Model	Description
ONV1110-MCX-S2	Gigabit multi-mode dual fiber media converter with 210/100/1000M RJ45 ports and 11.25G SC fiber port. 850nm/ 0-550m. Total power is 5W. External power supply.
ONV1110-SCX-S2	Gigabit single-mode dual fiber media converter with 210/100/1000M RJ45 ports and 11.25G SC fiber port. 1310nm/ 0-20km. Total power is 5W. External power supply.
ONV1110S-SCX-S2-A	Gigabit single-mode single fiber media converter with 210/100/1000M RJ45 ports and 11.25G SC fiber port. 1310nm/0-20km. Total power is 5W. External power supply.
ONV1110S-SCX-S2-B	Gigabit single-mode single fiber media converter with 210/100/1000M RJ45 ports and 11.25G SC fiber port. 1550nm/0-20km. Total power is 5W. External power supply.

PACKING LIST

Packing List	Content	Qty	Unit
	3-port Gigabit single-mode dual fiber media converter	1	Set
	Power Adapter 5V/1A	1	PC
	User Guide	1	PC
	Warranty Card and Certificate of Conformity	1	PC

TECHNICAL SPECIFICATION

Model	ONV1110-MCX-S2	ONV1110-SCX-S2	ONV1110S-SCX-S2-A/B
Interface Characteristics
Interface	11000M uplink SC fiber port (Data) 210/100/1000Base-T RJ45 ports (Data)
Ethernet Port	Port 1-2 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	1.25G multi-mode dual fiber SC interface	1.25G single-mode dual fiber SC interface	1.25G single-mode single fiber SC interface
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m	Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	3.0Gbps (non-blocking)
Forwarding Rate @64byte	4.46Mpps
MAC	2K
Buffer Memory	1M
LED Indicator	Power: PWR (Green), Network: L/A (Green), Single/duplex: FDX (Green), Rate: 100/1000 (Green)
Power Supply
Total PWR/ Input Voltage	5W/ (5VDC)
Power Consumption	Standby<1W, Full Load<5W
Physical Parameter
Operation Temp/ Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40°C~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	106.77226mm
Net /Gross Weight	0.3kg/ 0.45kg
Installation	Desktop, 2U-14 slot rack
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance
