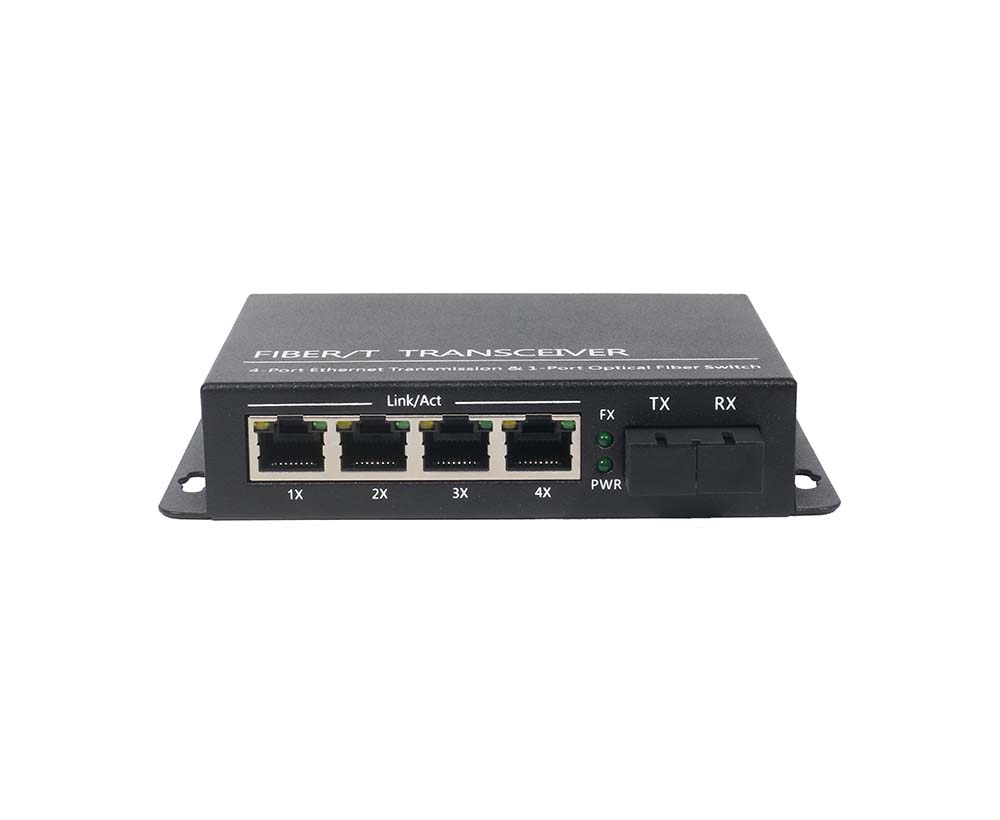

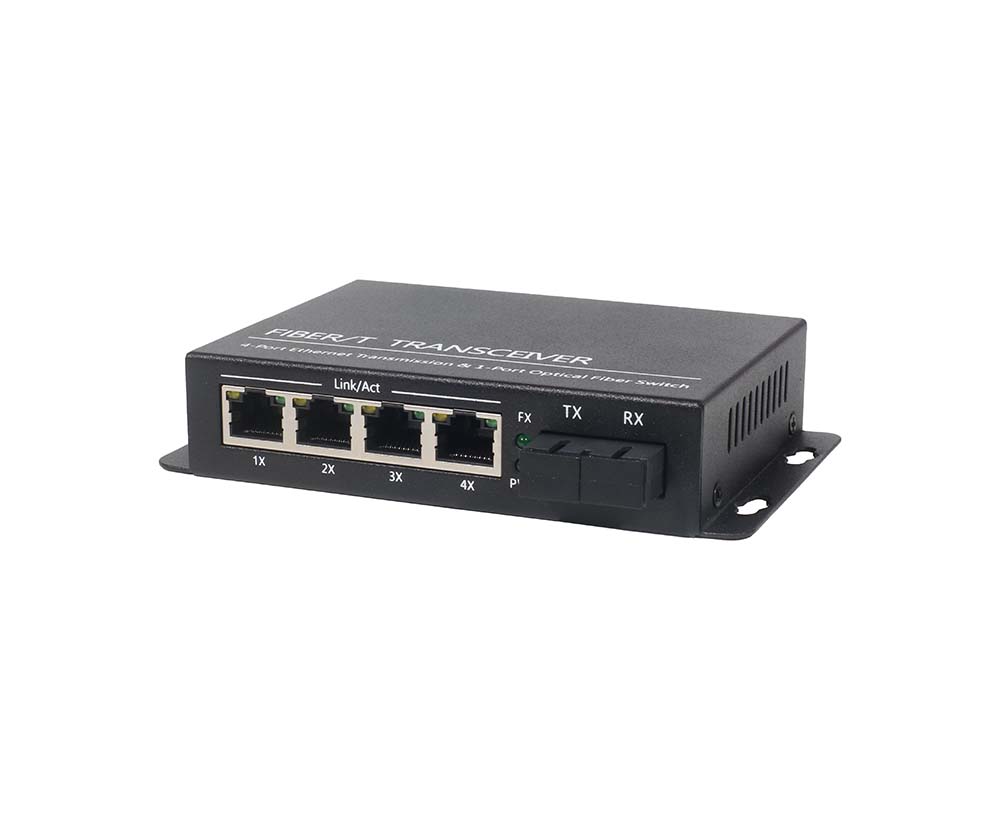

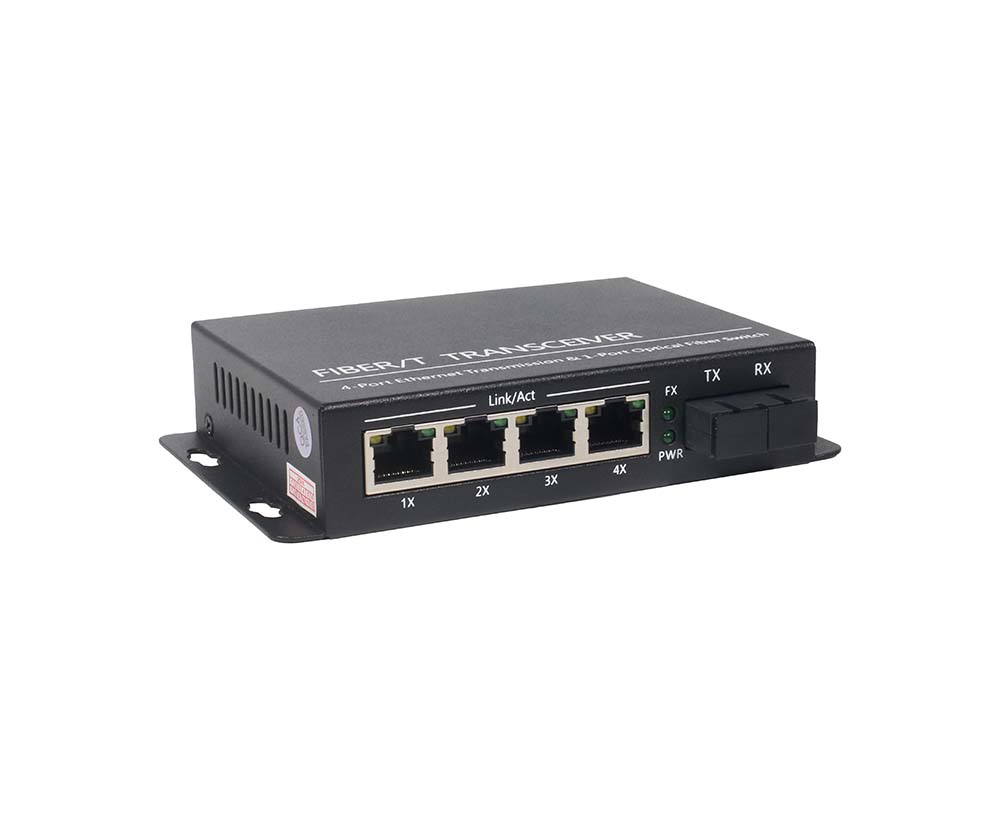

The ONV0110-SCX-S4 is a 10/100M fiber media converter independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 1*155M uplink SC fiber port. Users can select different optical modules, such as multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts enterprise-level telecom-grade chip solutions with stable performance, excellent quality, and high-cost performance. It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M photoelectric Ethernet conversion transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support 100M RJ45 port and 155 SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Easy to use
◇ Full-duplex/half-duplex working mode with auto-negotiation function.
◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.
◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.
◇ Compatible with IEEE 802.3u 100Base-TX/FX network protocol, 10/100M R45 port rate auto-negotiation.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, no fan, galvanized steel housing, and excellent heat dissipation ensure stable operation of the product.
ORDERING INFORMATION
|
Model |
Description |
|
ONV0110-MCX-S4 |
Multi-mode dual fiber media converter with 4*10/100M RJ45 ports and 1*155M SC fiber port. Total power is 4W. 850nm/ 0-550m, 1310nm/ 0-2km. External power supply. |
|
ONV0110-SCX-S4 |
Single-mode dual fiber media converter with 4*10/100M RJ45 ports and 1*155M SC fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV0110S-SCX-S4-A |
Single-mode single fiber media converter with 4*10/100M RJ45 ports and 1*155M SC fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV0110S-SCX-S4-B |
Single-mode single fiber media converter with 4*10/100M RJ45 ports and 1*155M SC fiber port. Total power is 4W. 1550nm/0-20km. External power supply. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
5-port 10/100M single-mode dual fiber media converter |
1 |
Set |
|
|
Power Supply (5V-1A) |
1 |
PC |
|
|
User Guide, Warranty Card, and Certificate of Conformity |
1 |
PC |
|
Model |
ONV0110-MCX-S4 |
ONV0110-SCX-S4 |
ONV0110S-SCX-S4-A/B |
|
Interface Characteristics |
|||
|
Interface |
1*155M uplink SC fiber port (Data) 4*10/100Base-TX RJ45 ports (Data) |
||
|
Ethernet Port |
Port 1-4 can support 10/100Base-TX auto-sensing, Full/ half duplex MDI/ MDI-X self-adaption |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
||
|
Optical Fiber Port |
155M multi-mode dual fiber SC interface |
155M single-mode dual fiber SC interface |
155M single-mode single fiber SC interface |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km |
Single-mode: 1310nm / 0-40km, 1550nm /0-120km |
|
|
Chip Parameter |
|||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x |
||
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
||
|
Switching Capacity |
1.0Gbps |
||
|
Forwarding Rate @64byte |
0.47Mpps |
||
|
MAC |
1K |
||
|
Buffer Memory |
2K |
||
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), Fiber port: FX (Green) |
||
|

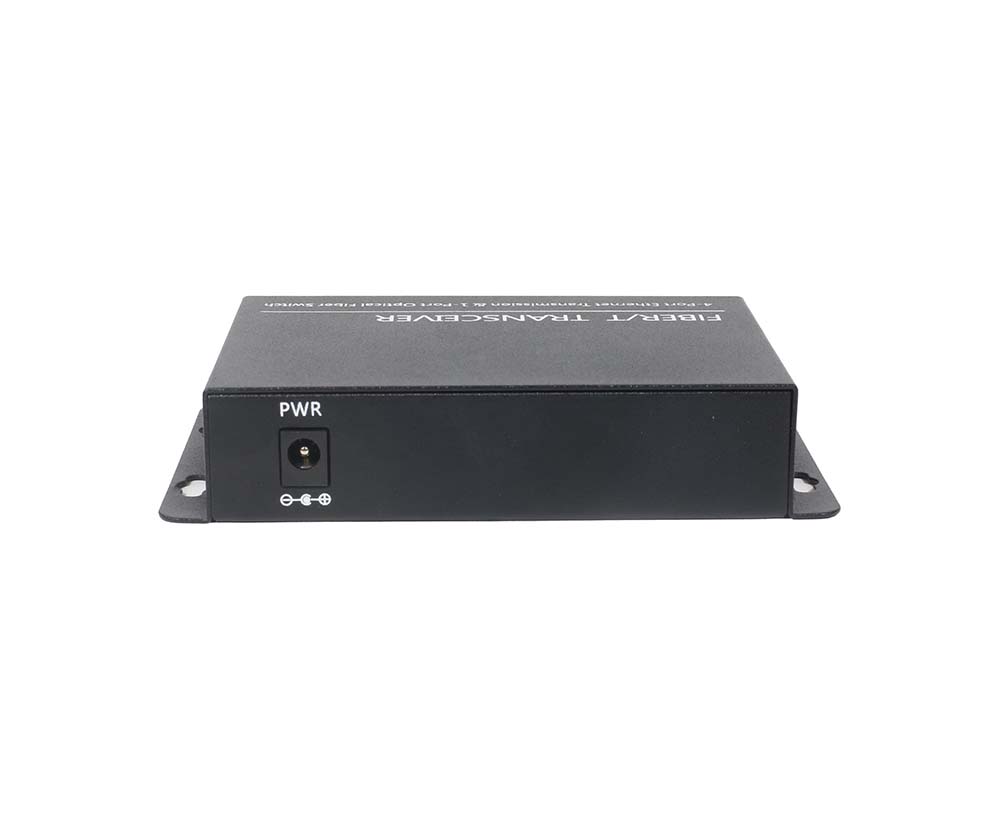

Power Supply |
|||
|
Total PWR/ Input Voltage |
4W/ 5VDC |
||
|
Power Consumption |
Standby<3W, Full Load<5W |
||
|
Physical Parameter |
|||
|
Operation Temp/ Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
||
|
Storage Temp/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
||
|
Dimension (L*W*H) |
134mm*82mm*27mm |
||
|
Net /Gross Weight |
<0.6kg/<0.8kg |
||
|
Installation |
Desktop |
||
|
Certification & Warranty |
|||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
||
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
||
|
Warranty |
3 years, lifelong maintenance. |
||
