10/100m 2-портовый конвертер средств волокна

Модель： ONV0110-MCX-O

Конвертер средств волокна 10/100M многорежимный двойной с портом 1*10/100M RJ45 и портом волокна SC 1*155M. 850/1310нм/0-2 км, с 16 стойкой для слотов 2U.

Я хочу сделать запрос

Обзор
Техническая спецификация
Применение
Документы
Сопутствующие товары

OVERVIEW

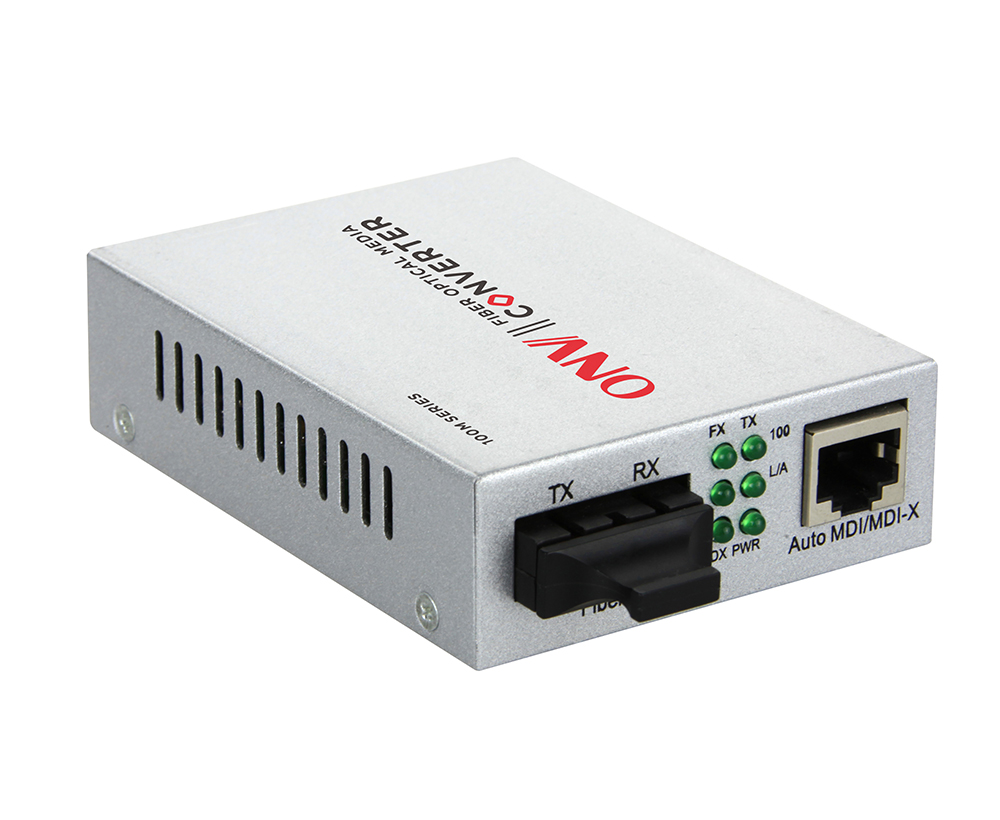

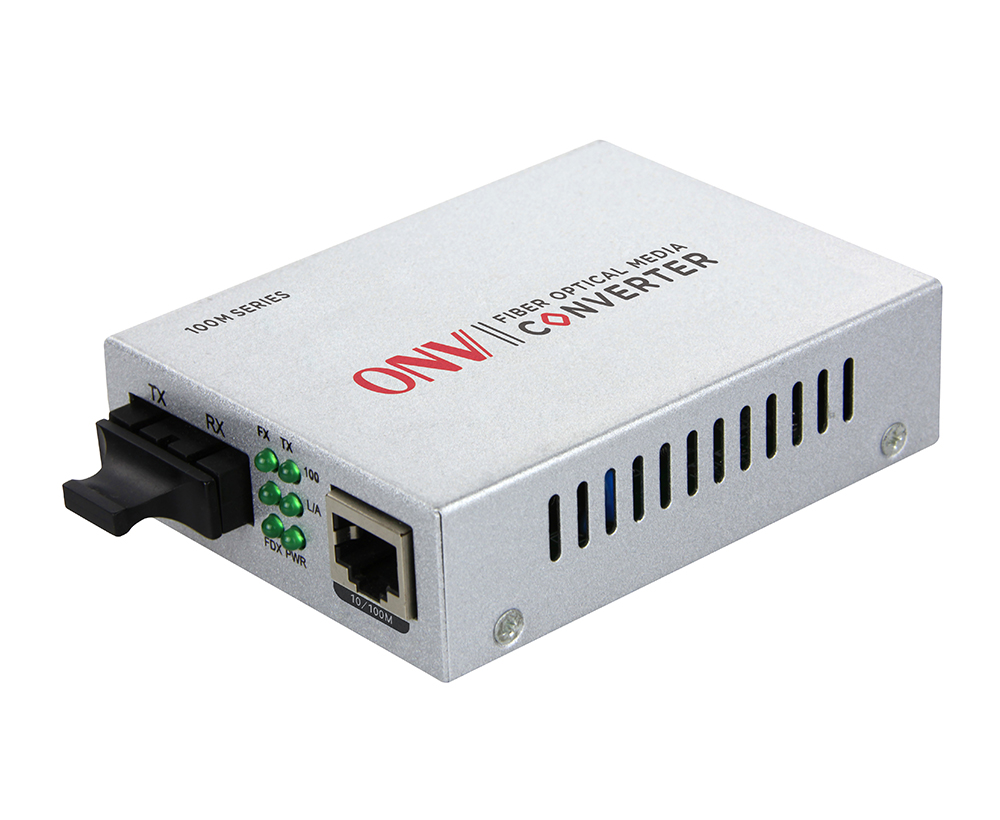

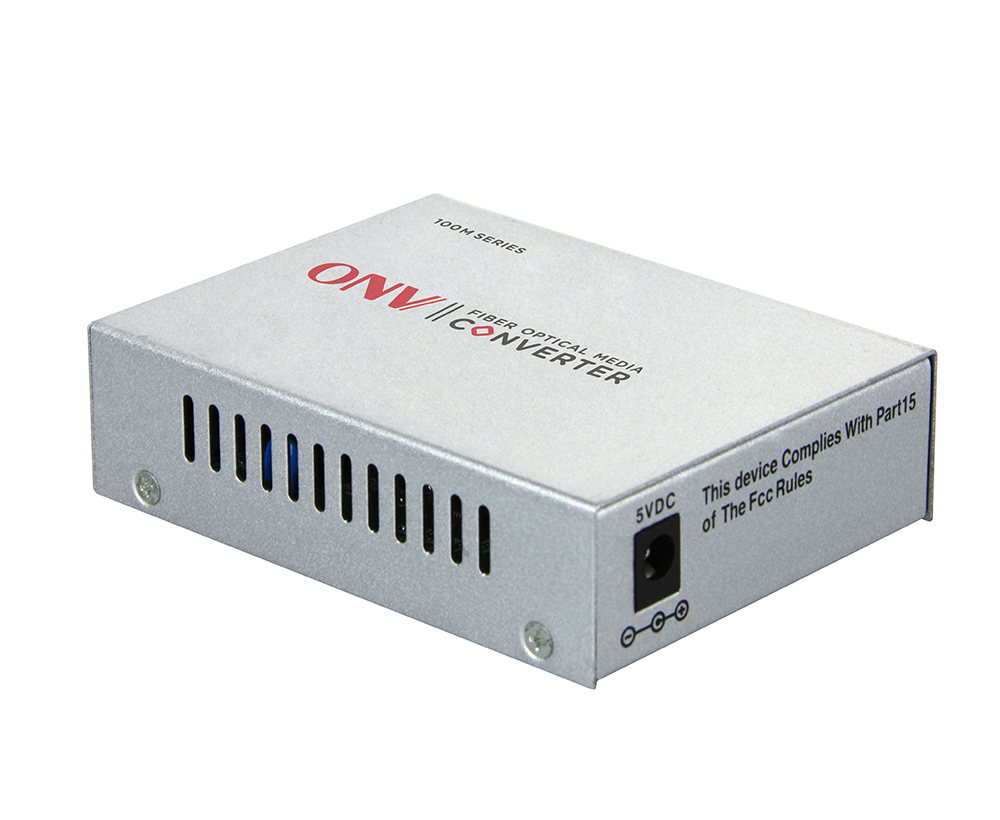

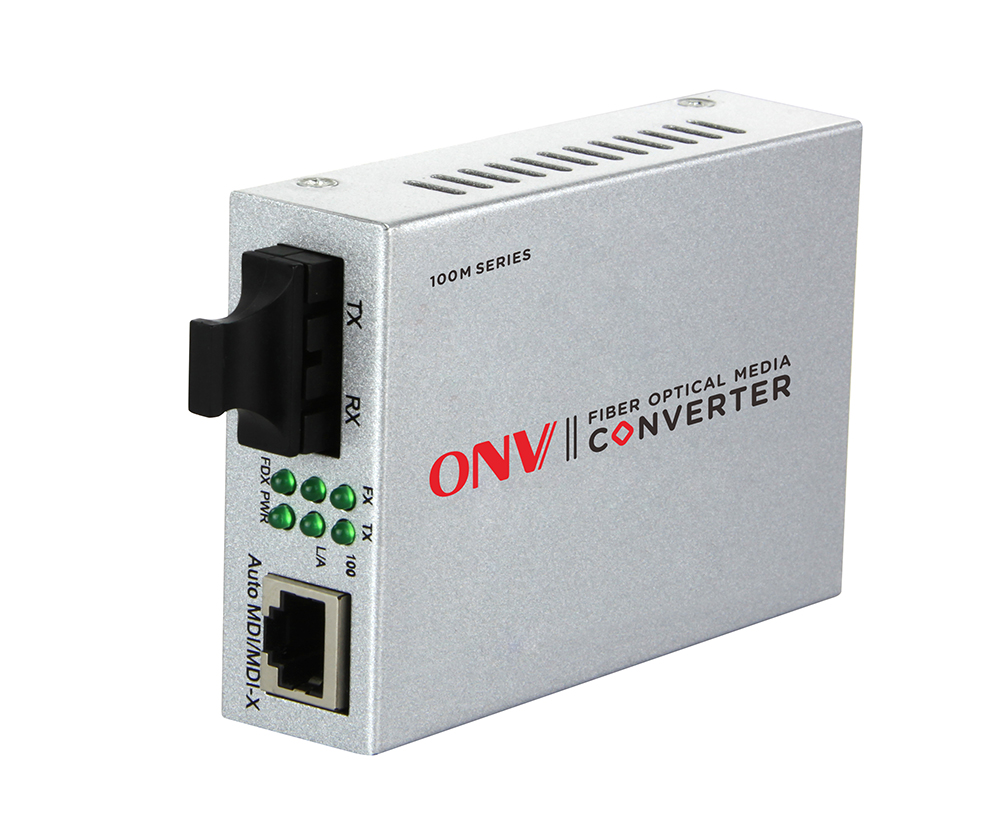

The ONV0110-MCX-O is a 10/100M fiber media converter independently developed by ONV. It has 1*10/100Base-TX RJ45 port and 1*155M uplink SC fiber port. User can select different optical modules, such as multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek company's carrier-grade chip solution, which has stable performance, good quality, and high cost performance. It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network. Unmanaged mode, plug, and play, no configuration, easy to use.

FEATURE

10/100M photoelectric Ethernet transmission

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Support 100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Easy to use and simple to maintain

◇ Support full-duplex/half-duplex working mode with auto-negotiation function.

◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.

◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.

◇ Compatible with IEEE 802.3u 100Base-TX/FX network protocol,10/100M R45 port rate auto-negotiation.

◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-16 slot rack.

ORDERING INFORMATION

Model	Description
ONV0110-MCX-O	10/100M multi-mode dual fiber media converter with 110/100M RJ45 port and 1155M SC fiber port. 850/1310nm/ 0-2km, with 16 slot 2U rack.
ONV0110-SCX	10/100M single-mode dual fiber media converter with 110/100M RJ45 port and 1155M SC fiber port. 1310nm/0-20km. with 16 slot 2U rack.
ONV0110S-SCX-A	10/100M single-mode single fiber media converter with 110/100M RJ45 port and 1155M SC fiber port. 1310nm/1550nm/0-20km. with 16 slot 2U rack.
ONV0110S-SCX-B	10/100M single-mode single fiber media converter with 110/100M RJ45 port and 1155M SC fiber port. 1310nm/1550nm/0-20km. with 16 slot 2U rack.

TECHNICAL SPECIFICATION

Model	ONV0110-MCX-O	ONV0110-SCX	ONV0110S-SCX-A/B
Interface Characteristics
Interface	110/100Base-TX RJ45 port (Data) 1155M uplink SC fiber port (Data)
Ethernet Port	10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters)
Optical Fiber Port	155Mbps, multi-mode dual fiber SC port	155Mbps, single-mode dual fiber SC port	155Mbps, single-mode single fiber SC port
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, 1310nm/ 0-2km	Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.0Gbps
Forwarding Rate@64byte	0.3Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (Green), Data: L/A (Green) Single / duplex: FDX (Green), Fiber: FX(Green), Rate: 10/100 (Green)
Power Supply
Power Supply	Centralized power supply by 16-slot 2U rack
Single Board Power / Input Voltage	3W/ (5VDC)
Single Board Power Consumption	Standby<1W,Full Load<3W
Physical Parameter
Operation TEM / Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40°C~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	100803mm
Net Weight	<0.03kg
Installation	Must be installed and used with 2U-16 slot rack
Certification & Warranty
Lightning Protection	Port Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
