OVERVIEW
ONV-PSE-PD3321 is an unmanaged PoE extender. It has 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1-2 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 25W. The working power of the PoE extender is taken from the PoE switch and no additional power supply. It is installed at the end of the 100 meters network cable to extend the network and POE power supply by 100 meters at full speed. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.
Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
Gigabit access, uplink PD RJ45 port
◇ 3*10/100/1000Base-T RJ45 ports to meeting the power supply and transmission requirements of the scene within 200 meters.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Intelligent PoE power supply
◇ 2*10/100/1000Base-T RJ45 ports can support PoE power supply to meeting the needs of PoE power supply in various security scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
Innovative function
◇ PoE extender can extend the network signal transmission distance and POE power supply distance.
◇ When the PoE extender is working, it does not need an external power supply to easily solve the bandwidth and power network cable transmission within 200 meters.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to use and maintain.

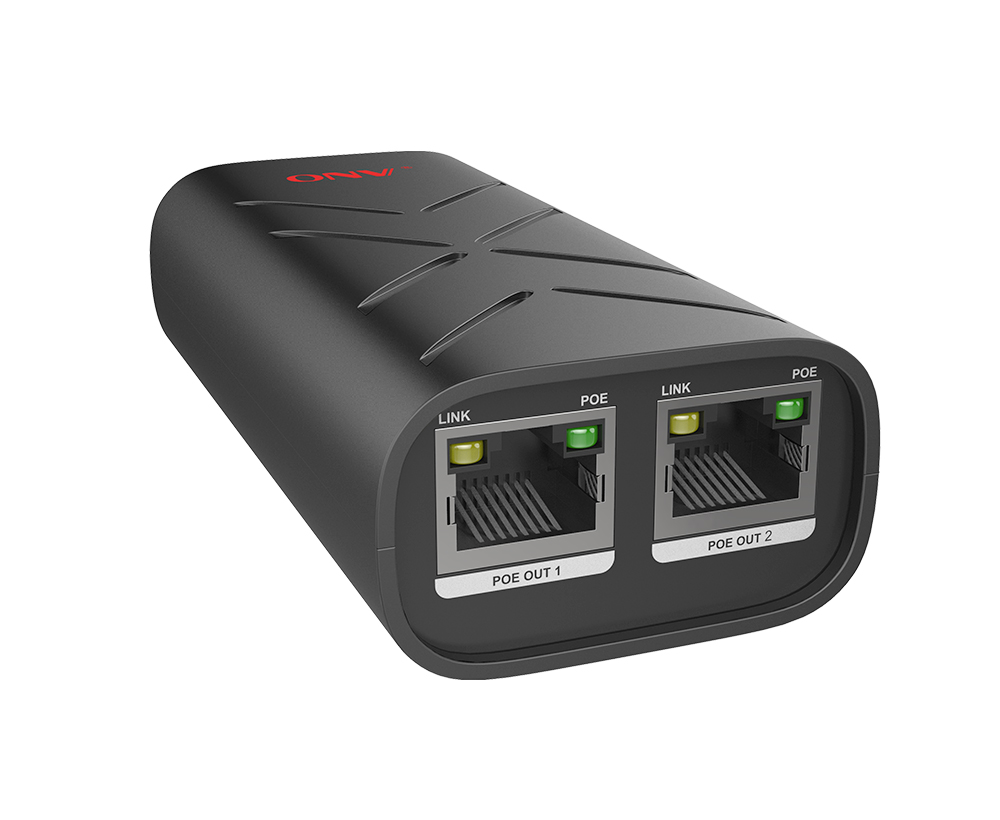

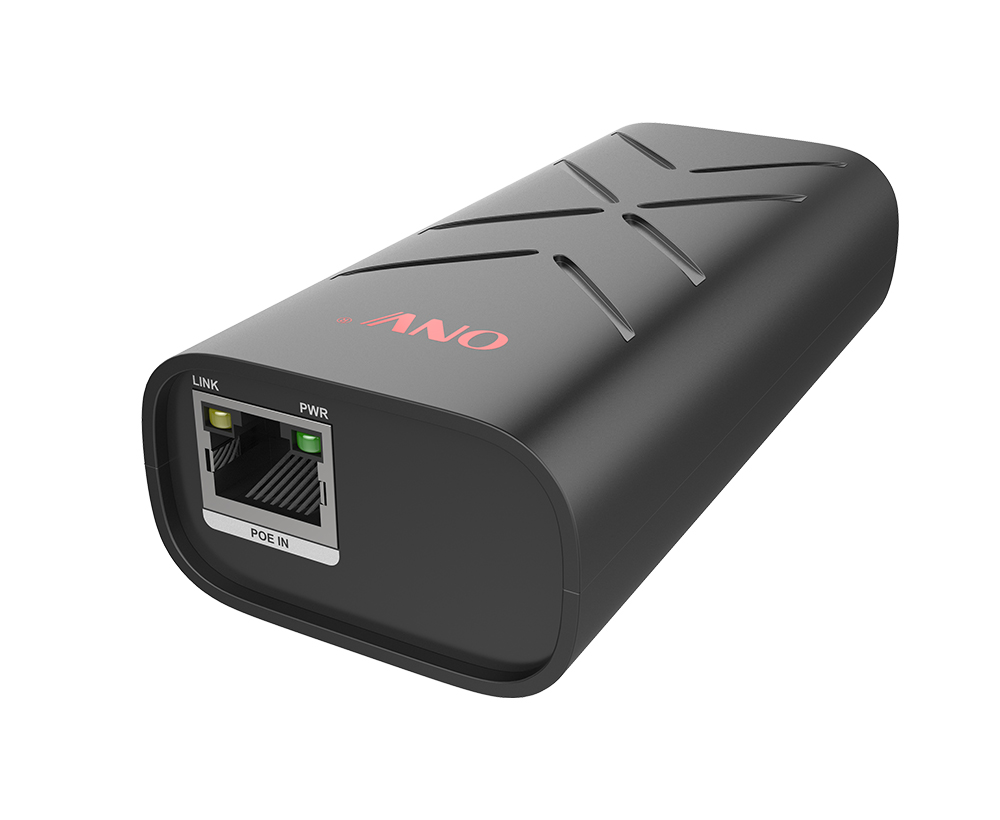

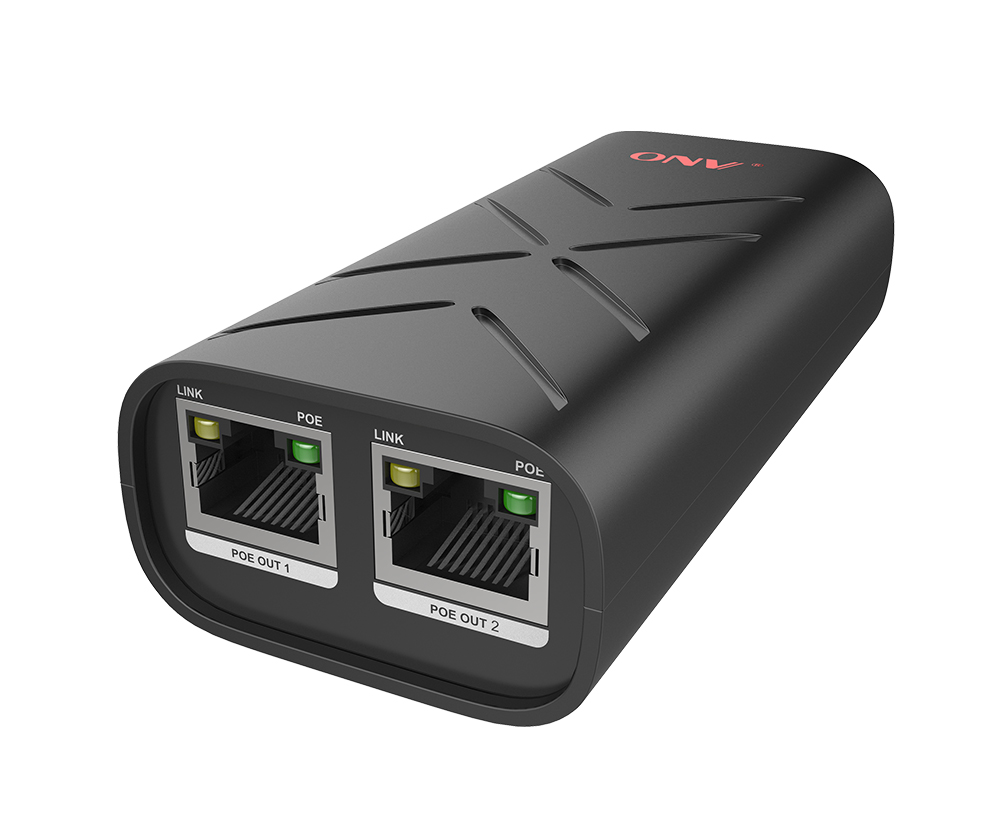

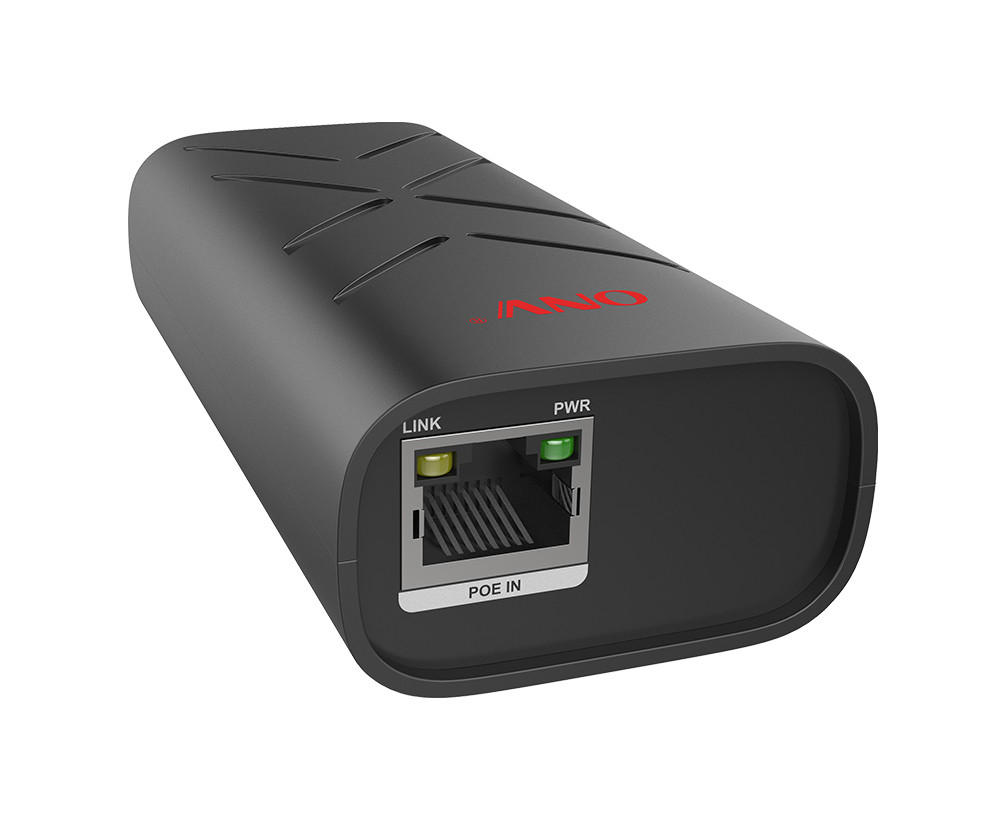

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link PoE.
◇ Low power consumption, fan-less silent design, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.

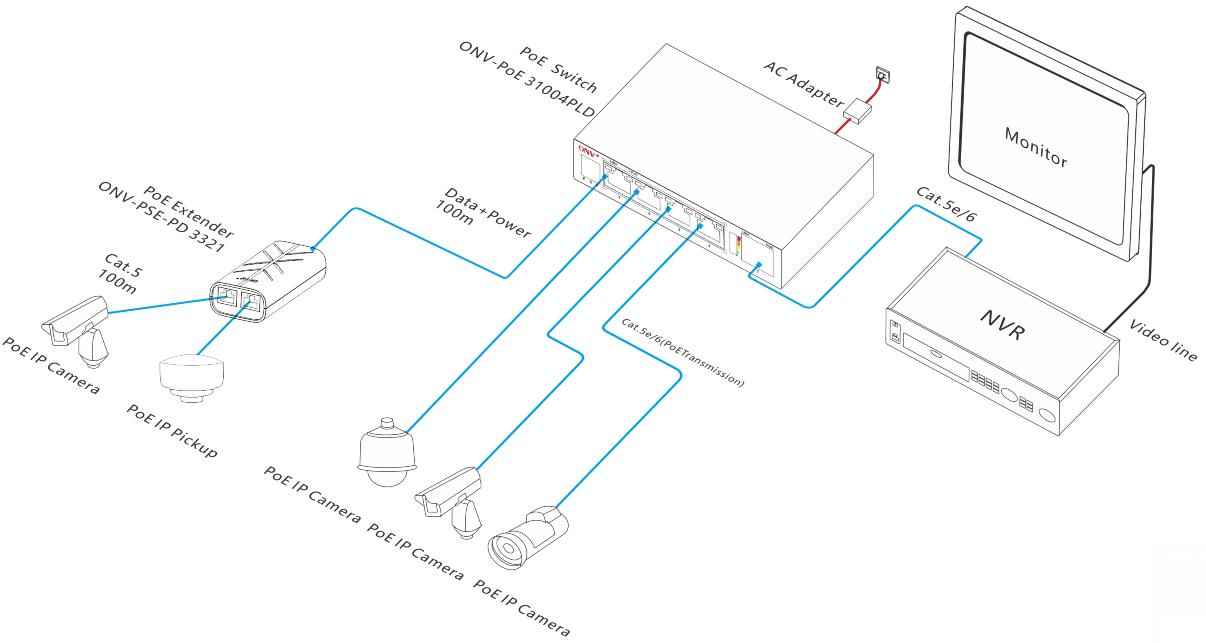

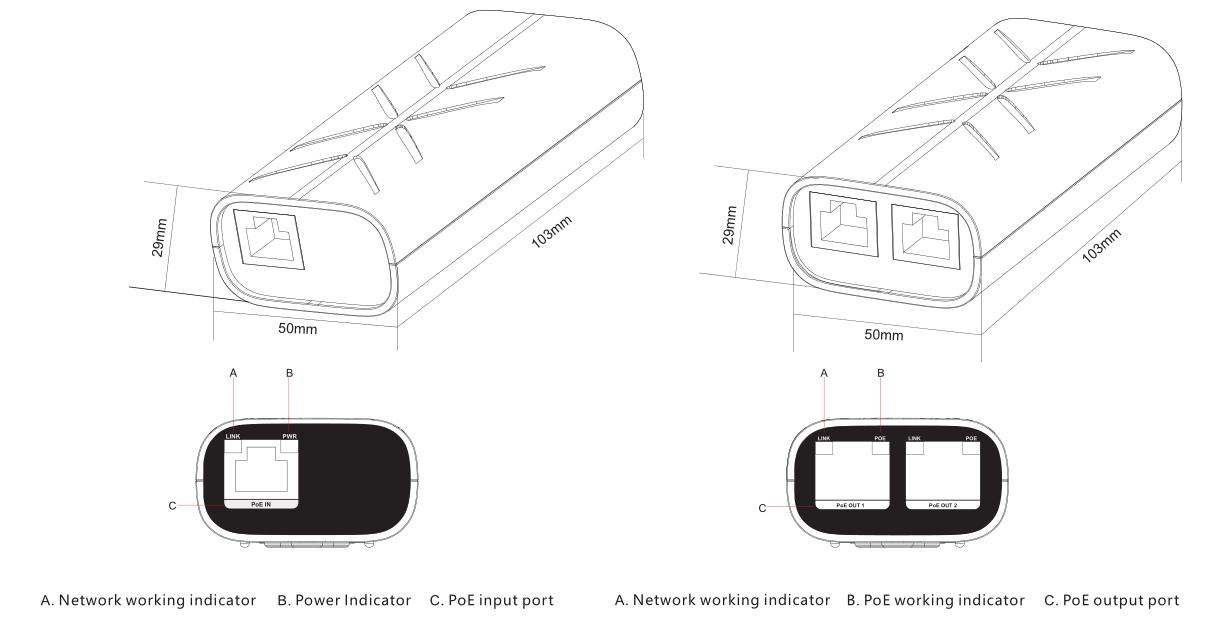

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-PSE-PD3321 |
Unmanaged PoE extender with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
|
ONV-PSE-PD3121 |
Unmanaged PoE extender with 2*10/100M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
3-port Gigabit PoE extender |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-PSE-PD3321 |
|
Interface Characteristics |
|
|
Fixed Port |
2*10/100/1000Base-T PoE ports (Data/Power) 1*10/100/1000Base-T uplink PD RJ45 port (Data/Power) |
|
Ethernet Port |
Port 1-3 support 10/100/1000Base-T auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
12Gbps(non-blocking) |
|
Forwarding Rate@64byte |
4.46Mpps |
|
MAC |
2K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power: PWR (Green), Data: Link(Yellow), POE: PoE (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-2 support IEEE802.3af/at @ POE |
|
Power Supply Pin |
Default 1/2 (+), 3/6 (-) |
|
Max Power Per Port |
25W, IEEE802.3af/at (Limited by max input power of at) |
|
Total PWR / Input Voltage |
25W (PoE) |
|
Power Consumption |
Standby<2W, Full load<30W |
|
Input Voltage and Interface |
PoE (IEEE802.3af/at), RJ45 port connection |
|
Power Supply |
N/A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
103*50*29mm |
|
Net /Gross Weight |
<0.07kg /<0.08kg |
|
Installation |
Desktop, wall mounted |
|
Certification & Warranty |
|
|
Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B RoHS |
|
Warranty |
1 year, lifelong maintenance. |
