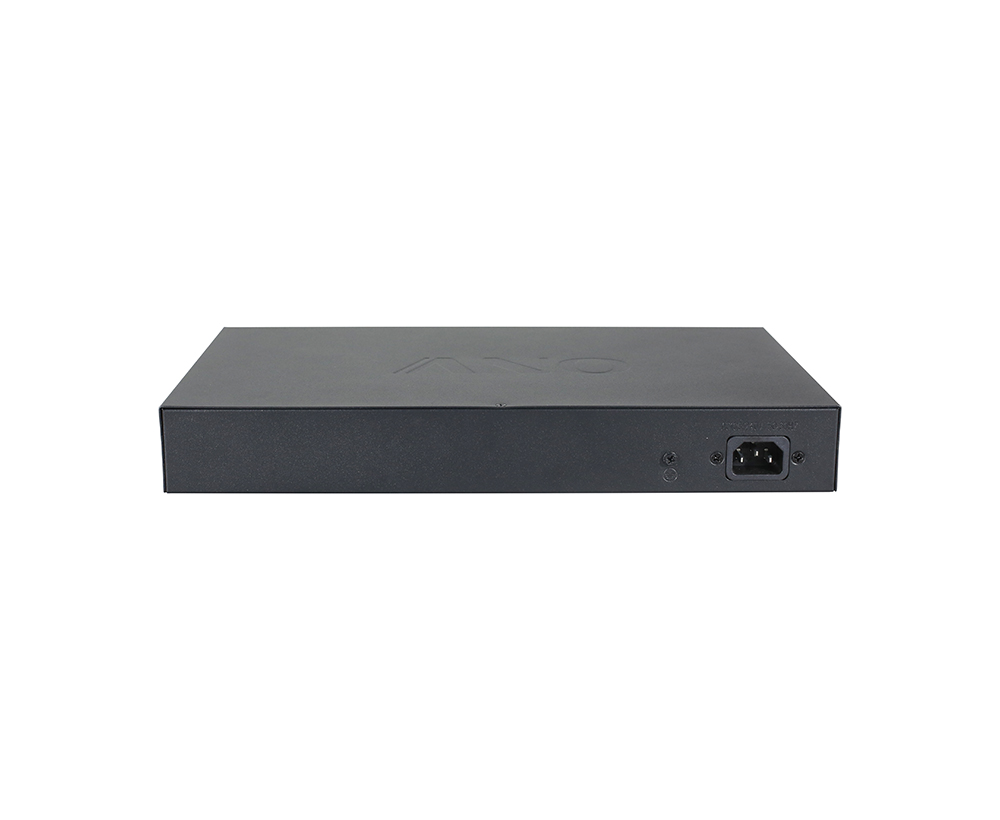

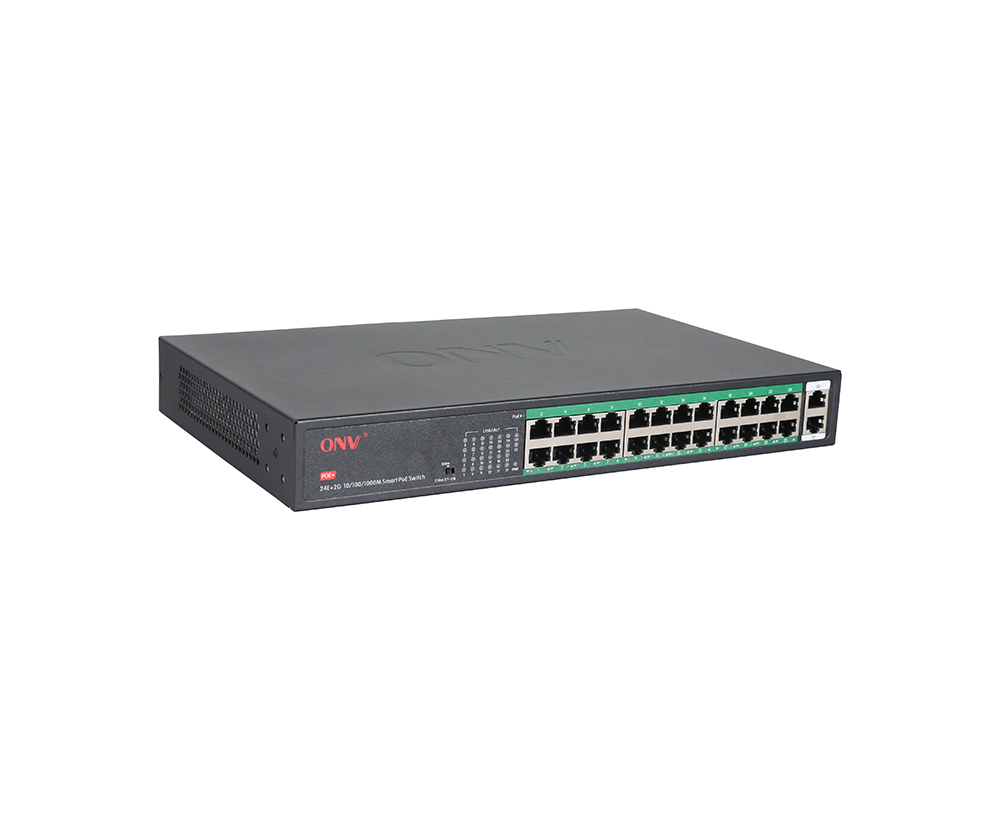

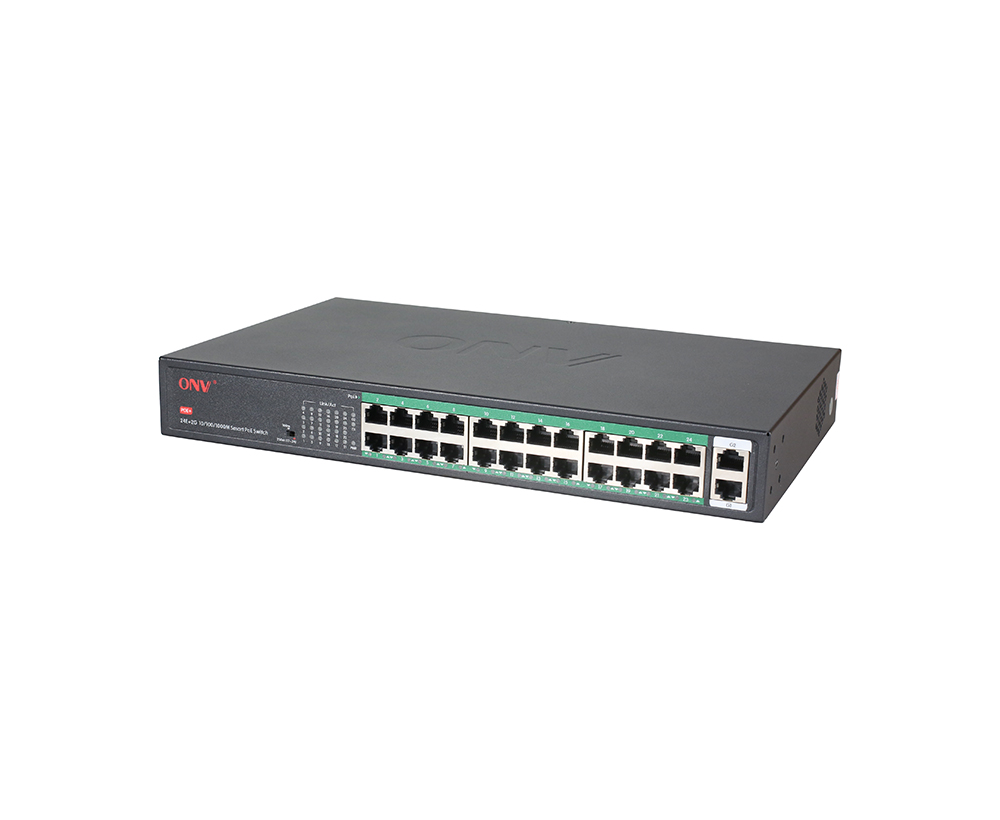

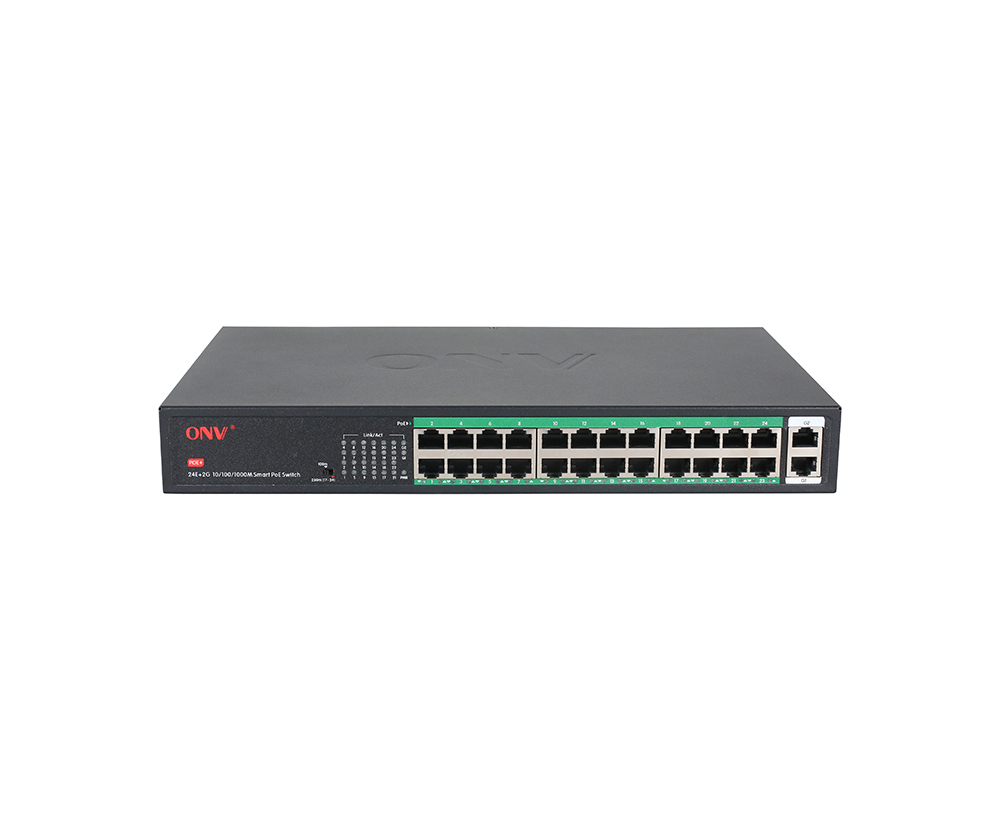

OVERVIEW
The ONV-H1024PL is an unmanaged Gigabit uplink PoE switch independently developed by ONV. It has 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support IEEE 802.3 af/at PoE standard, and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. It can power wireless AP, IP cameras, Internet phones, video intercom, and other PoE terminal equipment through network cables to meet the network environment that requires a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration required, simple and convenient to use.
FEATURE
10/100M access, Gigabit uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Provides 24*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
Smart PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 24*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to use
◇ CCC, CE, FCC, RoHS.
◇ Support desktop and 1U-19 inch cabinet installation.
◇ Plug and play, no configuration, simple and convenient.
◇ Port 17-24 can support 10M/250 meters transmission when the functional switch is on 250m.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.
◇ Low power consumption, galvanized steel casing, no fan, and excellent heat dissipation to ensure the stable operation of the switch.

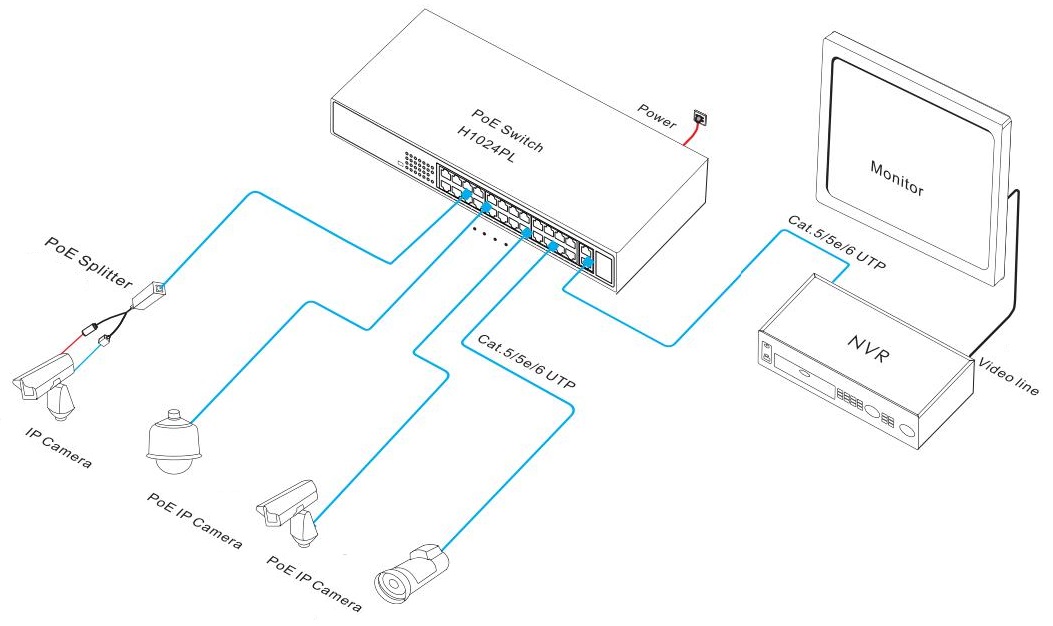

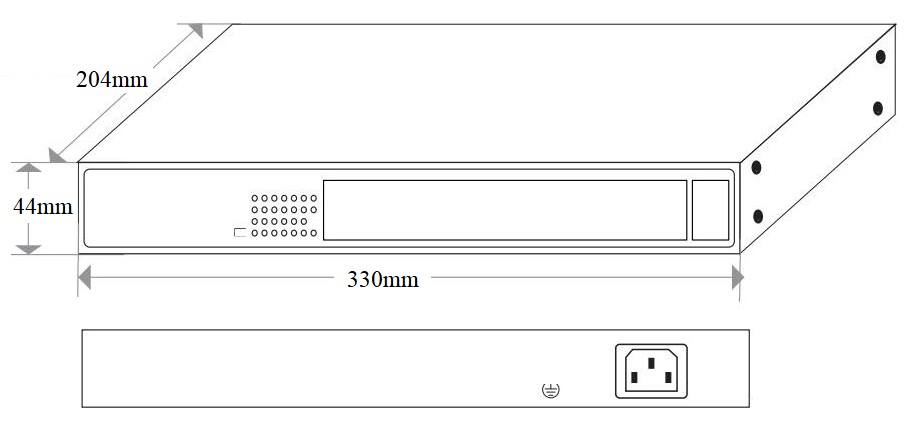

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H1016PL |
Unmanaged PoE switches with 16*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE 802.3 af/at PoE standard. Port 9-16 can support 10M/250 meters transmission when the functional switch is on 250m. Built-in power supply. |
250W |
|
ONV-H1024PL |
Unmanaged PoE switches with 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. Port 17-24 can support 10M/250 meters transmission when the functional switch is on 250m. Built-in power supply. |
250W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
26-port gigabit uplink PoE switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H1016PL |
ONV-H1024PL |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
24*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-16/ 1-24 support 10/100Base-TX and port 17-18/ 25-26 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Functional Switch |
Port 9-16/ 17-24 can support 10M/250 meters transmission when the functional switch is on 250m. Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect. |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
14.8Gbps (Non-blocking) |
|
|
Forwarding Rate@64byte |
5.36Mpps |
6.55Mpps |
|
MAC |
16K |
|
|
Buffer Memory |
4M |
|
|
Jumbo Frame |
9.6K |
|
|
LED Indicator |
Power: PWR (Green), Network : Link (Yellow), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 16 |
Port 1 to 24 |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
|
Total PWR / Input Voltage |
250W/ (AC100-240V) |
|
|
Power Consumption |
Standby<15W, Full load <250W |
Standby <20W, Full load <250W |
|
Power Supply |
Built-in switching power supply, AC100~240V 50-60Hz, 4.1A |
|
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
330*204*44mm |
|
Net /Gross Weight |
1.55kg / 2.05kg |
1.85kg / 2.4kg |
|
Installation |
Desktop, wall mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
