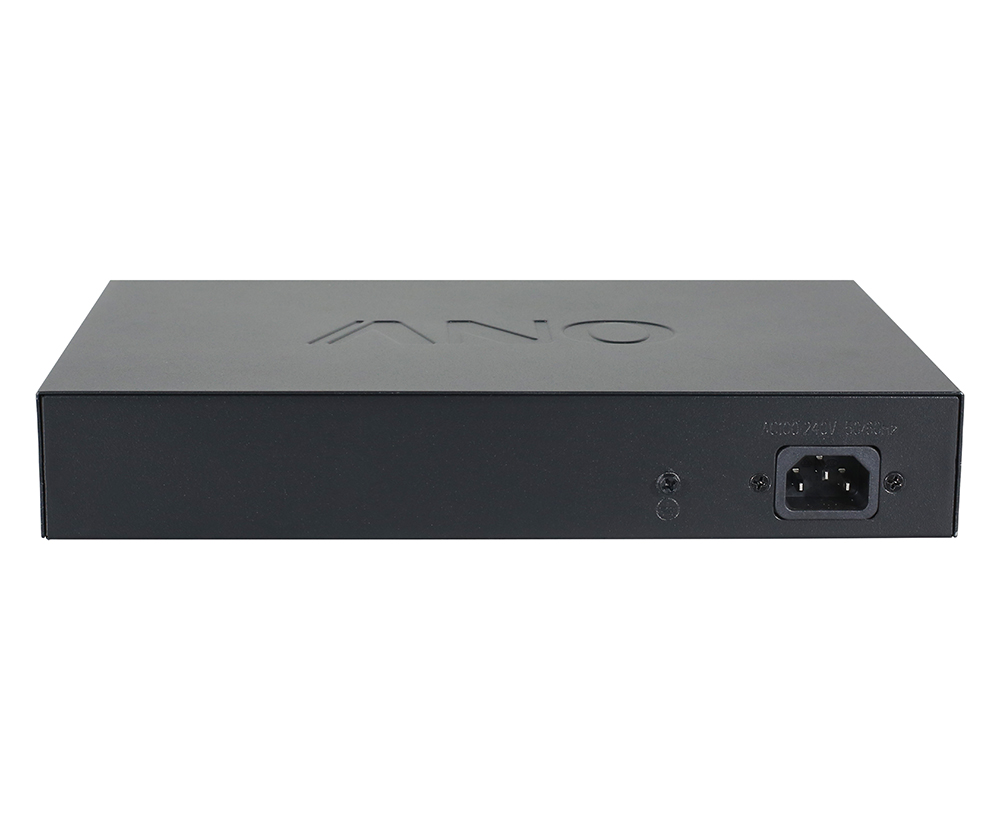

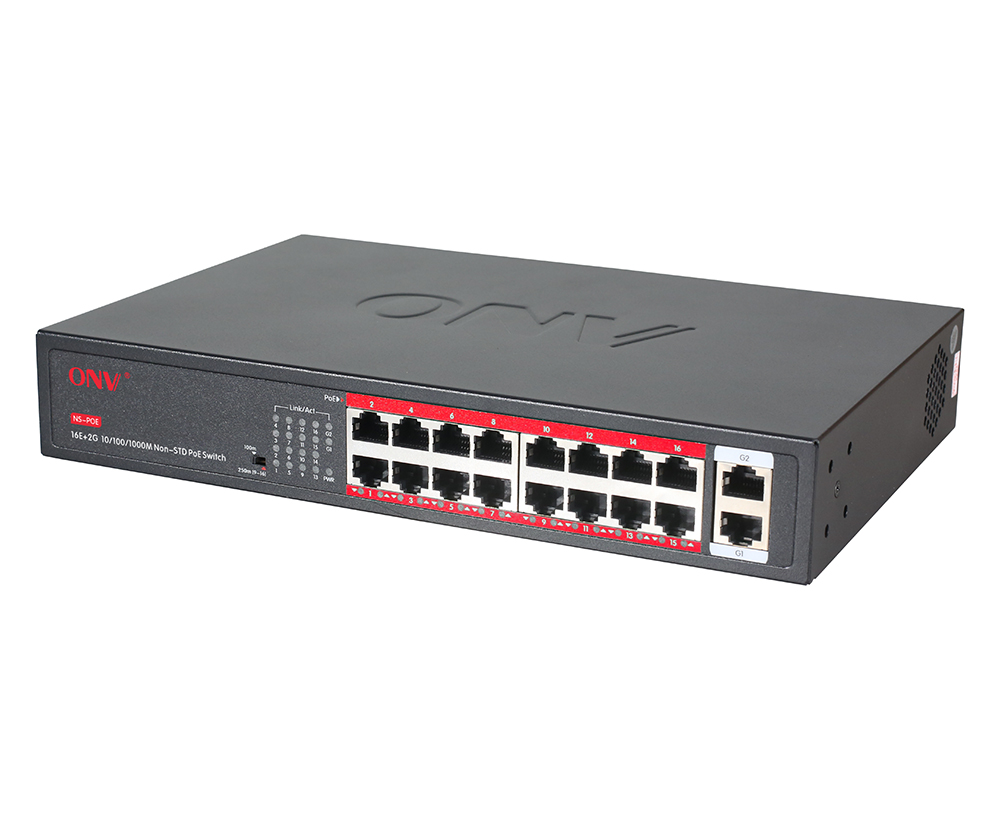

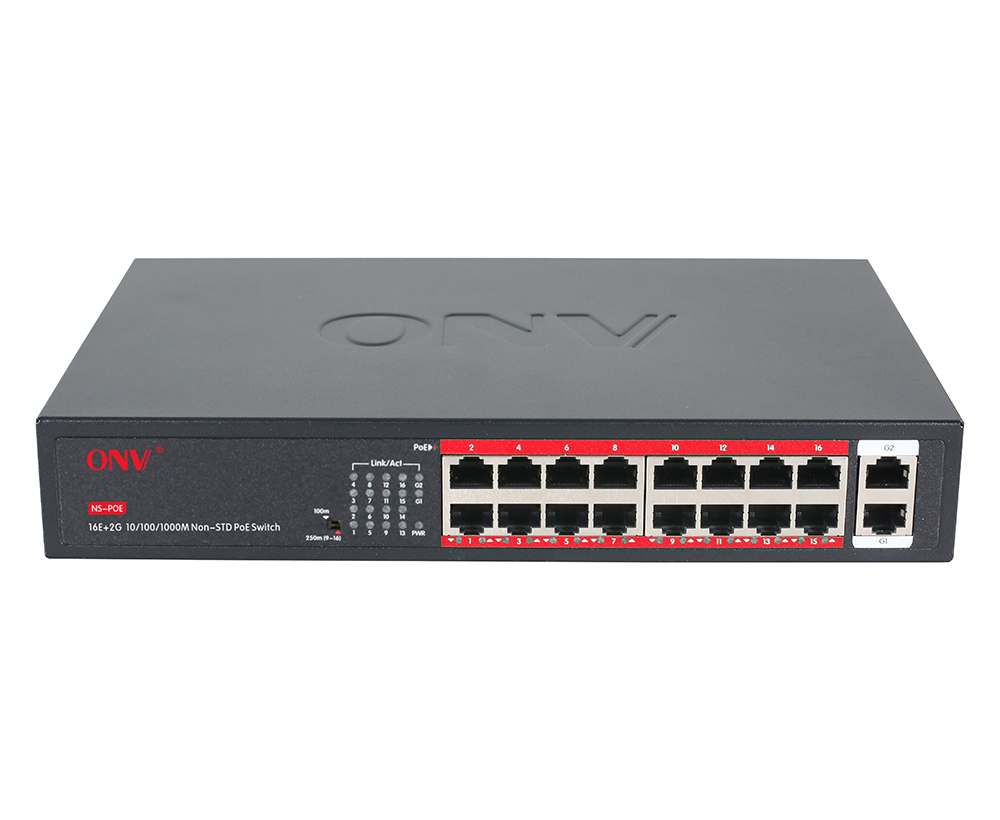

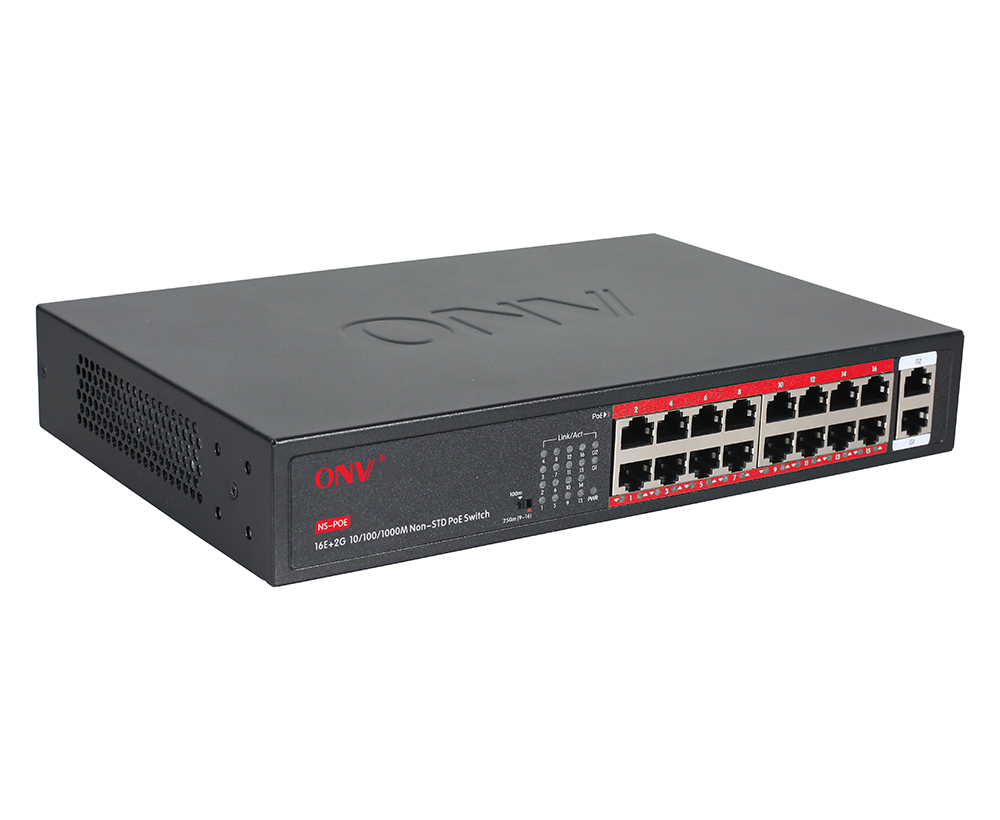

OVERVIEW
The ONV-H2016PL is a Gigabit uplink non-standard PoE switch independently developed by ONV. It has 16*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support 24V non-standard PoE+ power supply and single-port PoE power up to 24W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge), or the corresponding non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access, gigabit uplink RJ45 port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provides 16*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
Smart PoE power supply
◇ The max PoE output power is 250W and the max PoE output power of single-port is 24W.
◇ 16*10/100Base-TX RJ45 ports can support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

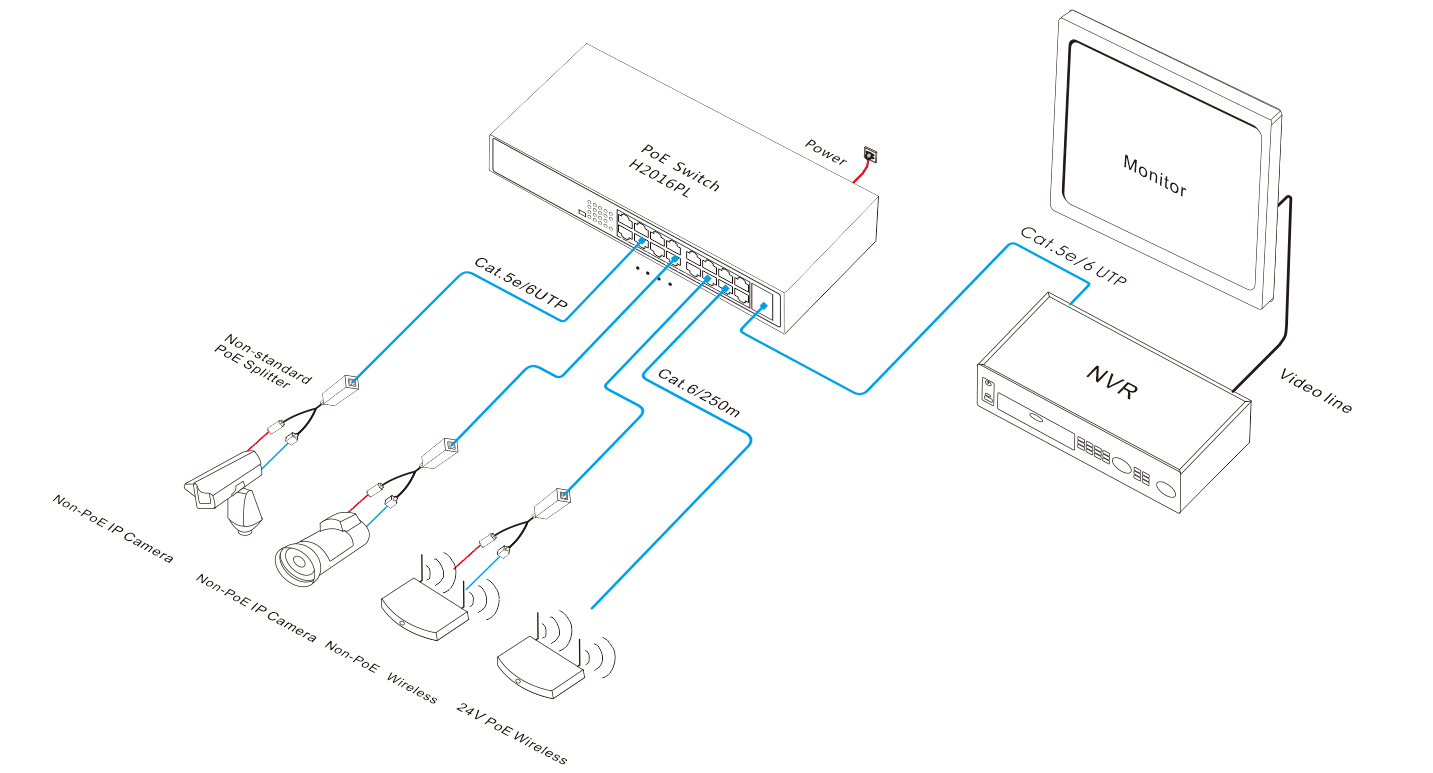

◇ It can quickly realize the power supply function of PoE cable through the two ways of switching directly to non-standard electrical equipment or switch and non-standard PoE splitter cable.
Stable and reliable, easy to use
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly pane can show the device status through the LED indicator of PWR, and PoE.
◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.
◇ Low power consumption, no fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H2016PL |
Unmanaged PoE switch with 16*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support 24V non-standard PoE+ power supply and port 9-16 can support 10M/250 meters transmission. |
250W |
|
ONV-H2024PL |
Unmanaged PoE switch with 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 support 24V non-standard PoE+ power supply and port 17-24 can support 10M/250 meters transmission. |
250W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
18-port gigabit uplink non-standard PoE switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H2016PL |
ONV-H2024PL |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-TX PoE ports (Data/ Power) 2*10/100/1000Base-T RJ45 ports (Data) |
24*10/100Base-TX PoE ports (Data/ Power) 2*10/100/1000Base-T RJ45 ports (Data) |
|
Ethernet Port |
Port 1-16/ 1-24 can support 10/100Base-T(X) and port 17-18/ 25-26 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Functional Switch (100m/ 250m) |
Port 9-16/17-24 can support 10M/250 meters transmission when turned on Note: When the switch status changes, the PoE switch must be restarted for the functional switch function to take effect. |
|
|
Twisted Pair Transmission |
10BASE-TX: Cat5 or later UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
14.8Gbps (non-blocking) |
|
|
Forwarding Rate@64byte |
5.36Mpps |
6.55Mpps |
|
MAC |
16K |
|
|
Buffer Memory |
4M |
|
|
Jumbo Frame |
10K |
|
|
LED Indicator |
Power: PWR (Green), Network: (Green) |
|
|
PoE&Power Supply |
||
|
PoE Port |
Port 1-16 |
Port 1-24 |
|
Power Supply Pin |
4/5(+) 7/8 (-) |
|
|
Max Power Per Port |
24W, non-standard PoE+ |
|
|
Total PWR / Input Voltage |
250W /(AC100-240V) |
|
|
Power Consumption |
Standby<15W, Full Load<250W |
Standby<20W, Full Load<250W |
|
Power Supply |
Built-in power supply, AC 100~240V 50-60Hz, 4.1A |
|
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
330*204*44mm |
|
Net /Gross Weight |
1.55kg/ 2.05kg |
1.85kg/ 2.4kg |
|
Installation |
Desktop, wall mount, rack mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
