OVERVIEW

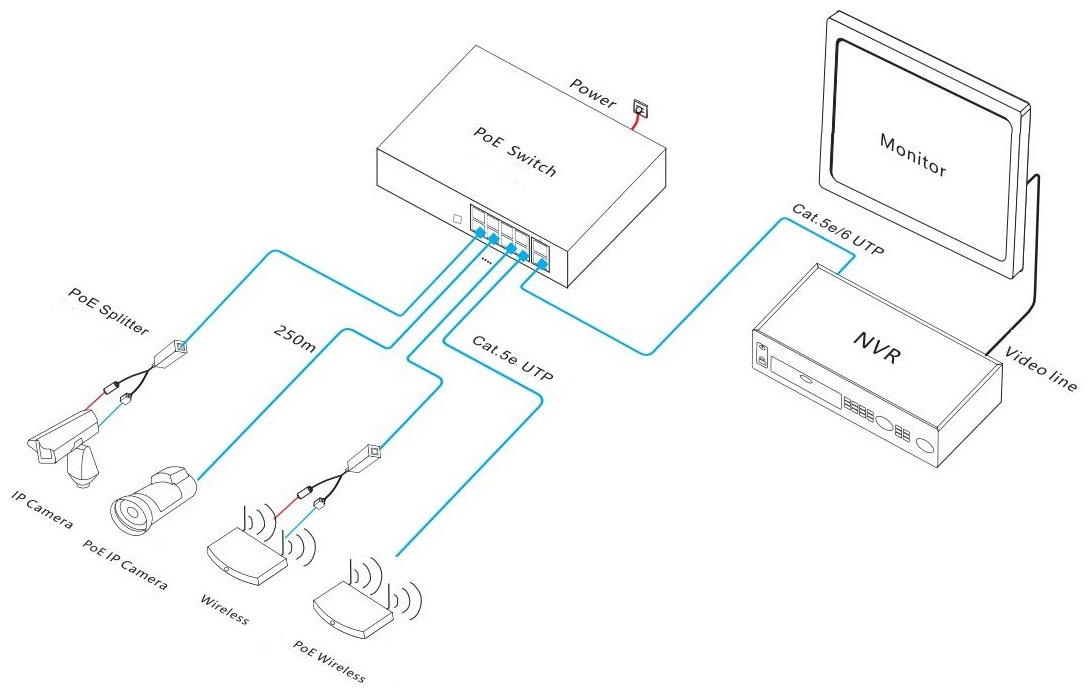

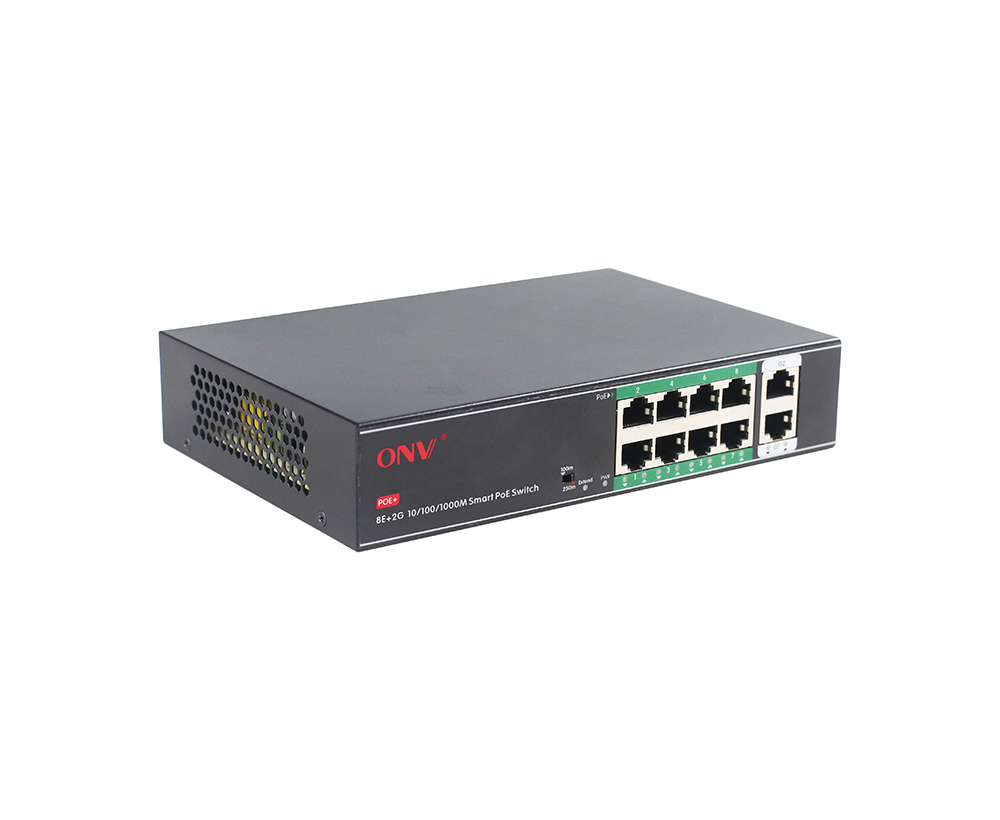

The ONV-H1108PGL is a 10/100Mbps unmanaged PoE switch independently developed by ONV. It has 8*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-8 can support PoE+ standard, and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP cameras, VoIP phones, video access control intercoms, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100M access, Gigabit dual RJ45 port uplink

◇ Support non-blocking wire-speed forwarding for smoother transmission.

◇ Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.

◇ Provides 8*10/100Base-TX RJ45 ports and 2*10/100/1000Base-T RJ45 ports for flexible networking and meets the networking requirements of various scenarios.

Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 8*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Innovative function

◇ Long distance mode(250m): When opening, the speed of port 1-8 is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters, on the other hand, It can solve the problem of poor transmission caused by line aging.

Stable and reliable, easy to use

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

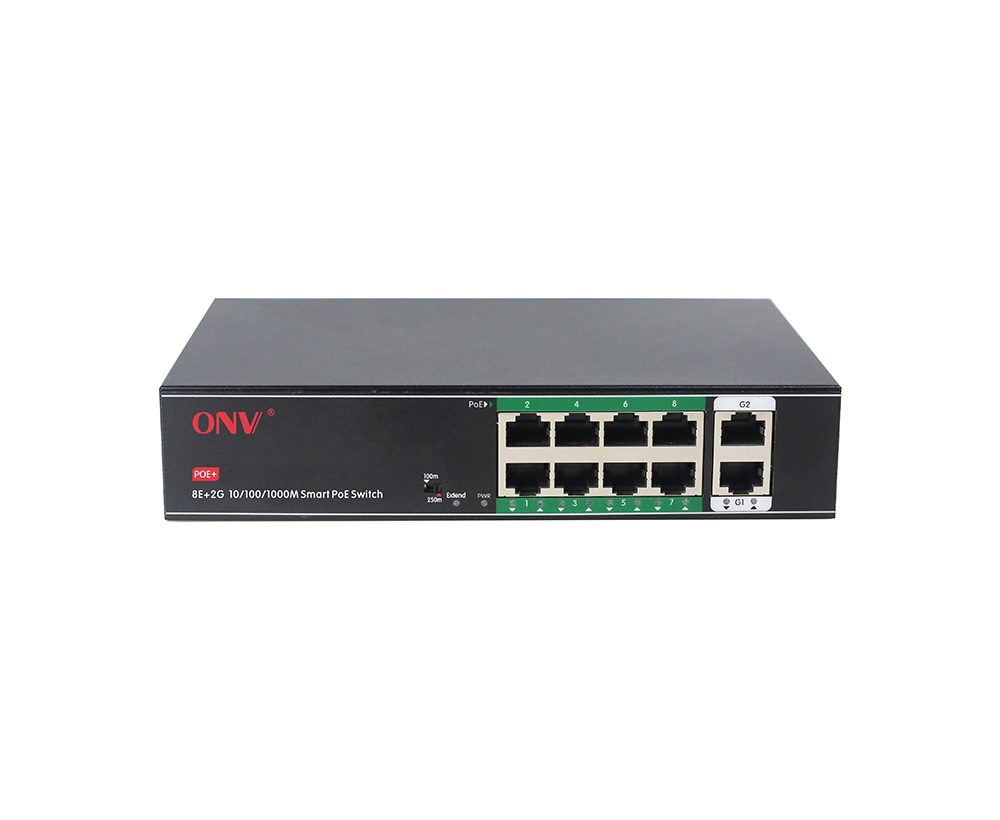

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link/ Act, and PoE.

◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.

◇ Low power consumption, galvanized steel casing, no fan, and excellent heat dissipation ensure the stable operation of the switch.

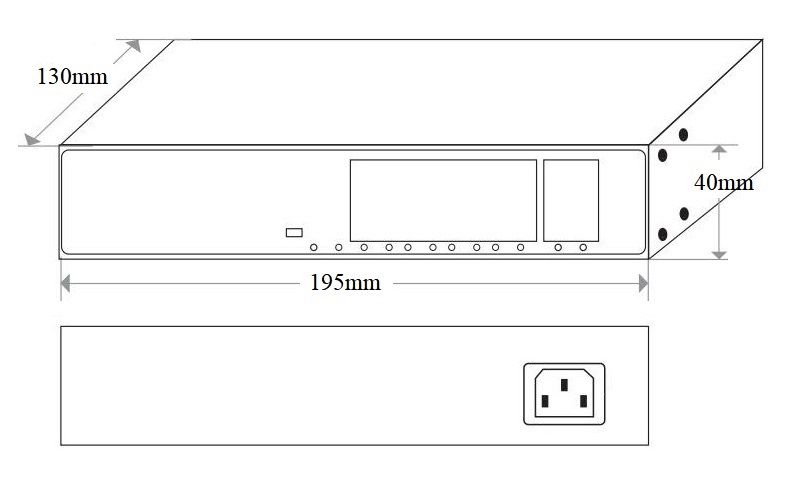

DIMENSION

ORDERING INFORMATION

PACKING LIST
