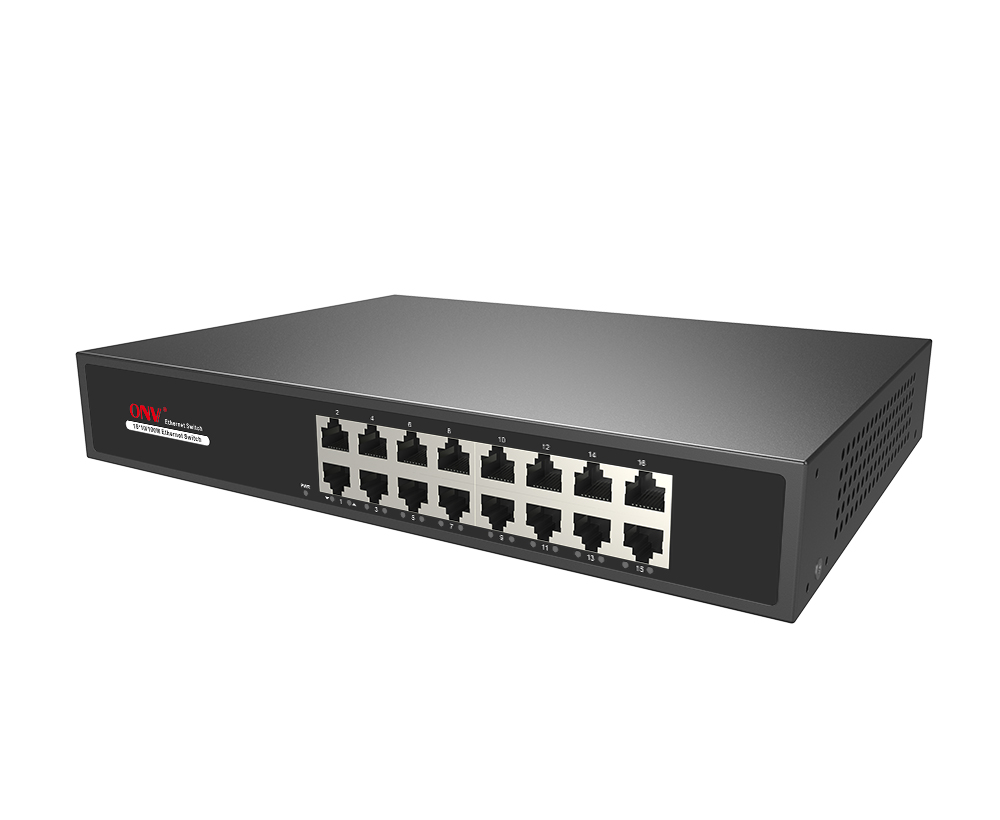

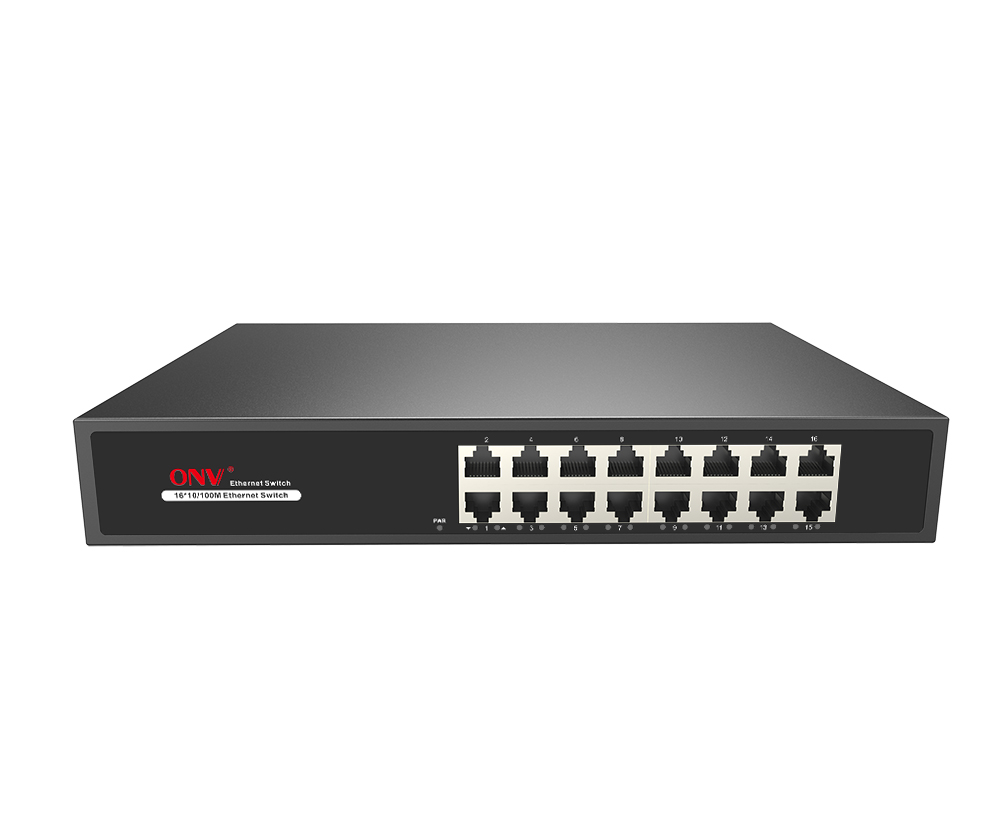

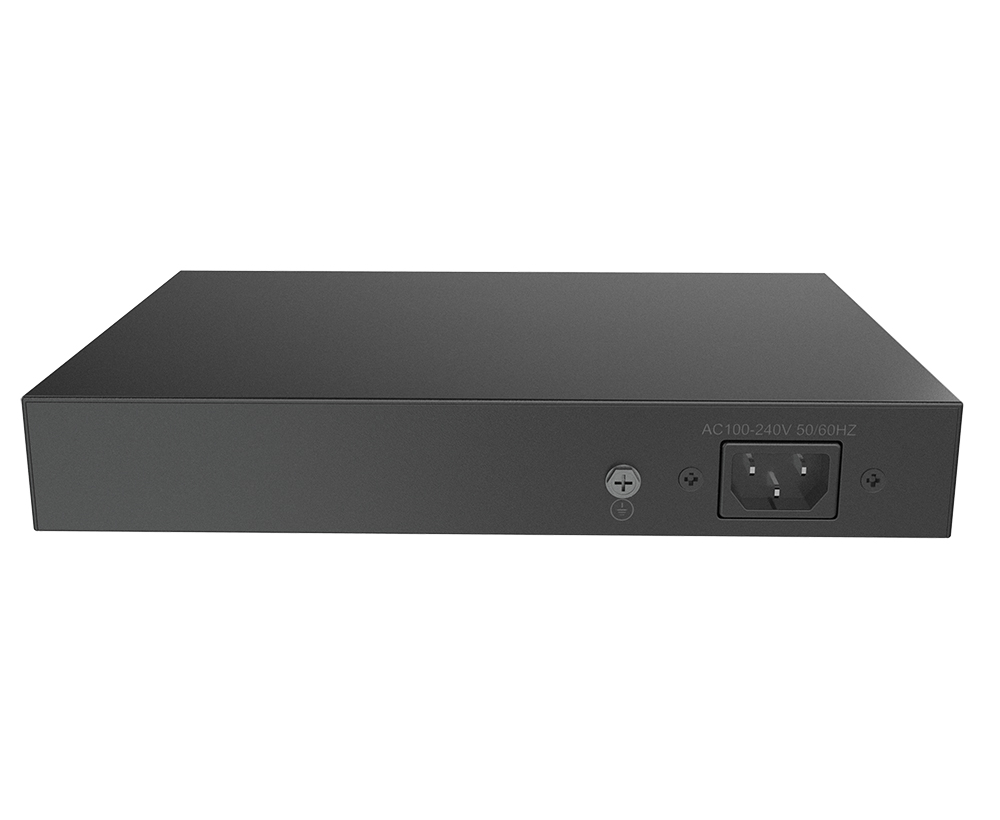

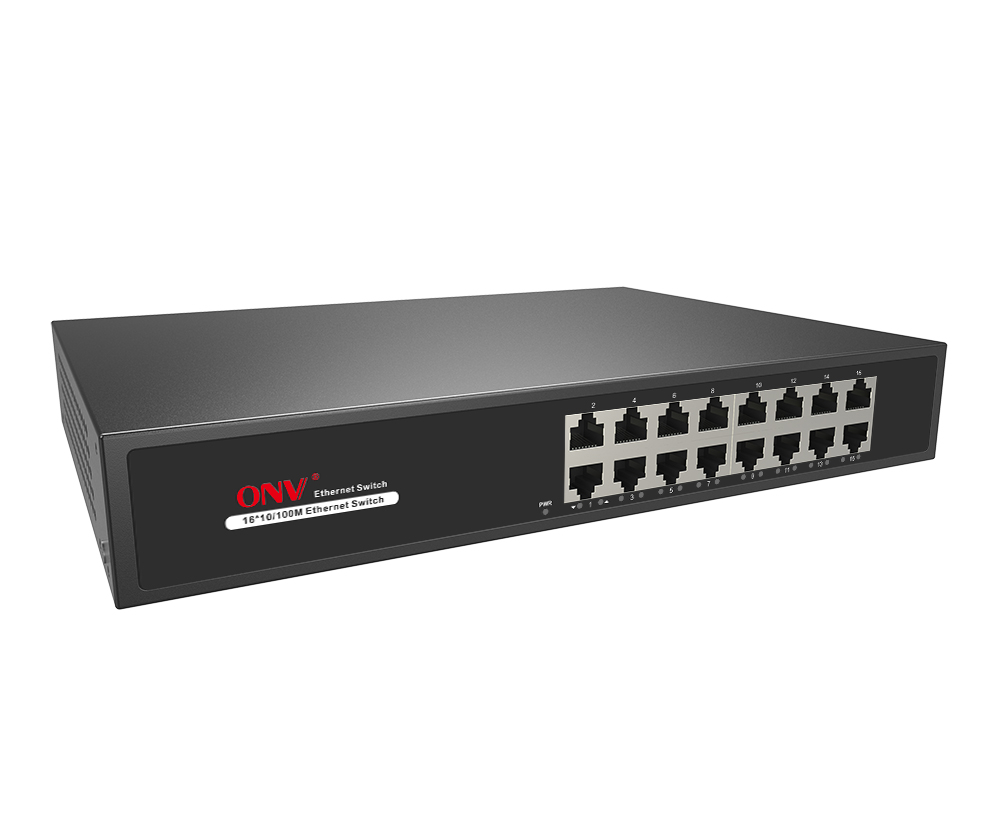

OVERVIEW
The ONV-H1016 is a high performance and easy-to-maintain high speed forwarding Ethernet switch independently developed by ONV. It is suitable for hotels, banks, campuses, factory dormitories, and small and medium-sized enterprises.
The ONV-H1016 has 16*10/100M adaptive RJ45 ports. Each port support full line-speed forwarding. 4M large-capacity cache to ensure timely transmission of large files and stable video streaming. 7*24 hours of stability, and no disconnection effectively solving problems such as video freezes and picture loss in high-definition surveillance environments. Plug and play, no configuration, simple and convenient to use.
FEATURE
10/100M access, full line-speed forwarding
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support 10/100M adaptive RJ45 port, plug and play, to meet the networking needs of various scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR and Link.
◇ Adopt high stability power supply, high redundancy design to provide long-term stable power output.
◇ Low power consumption, no fan, metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

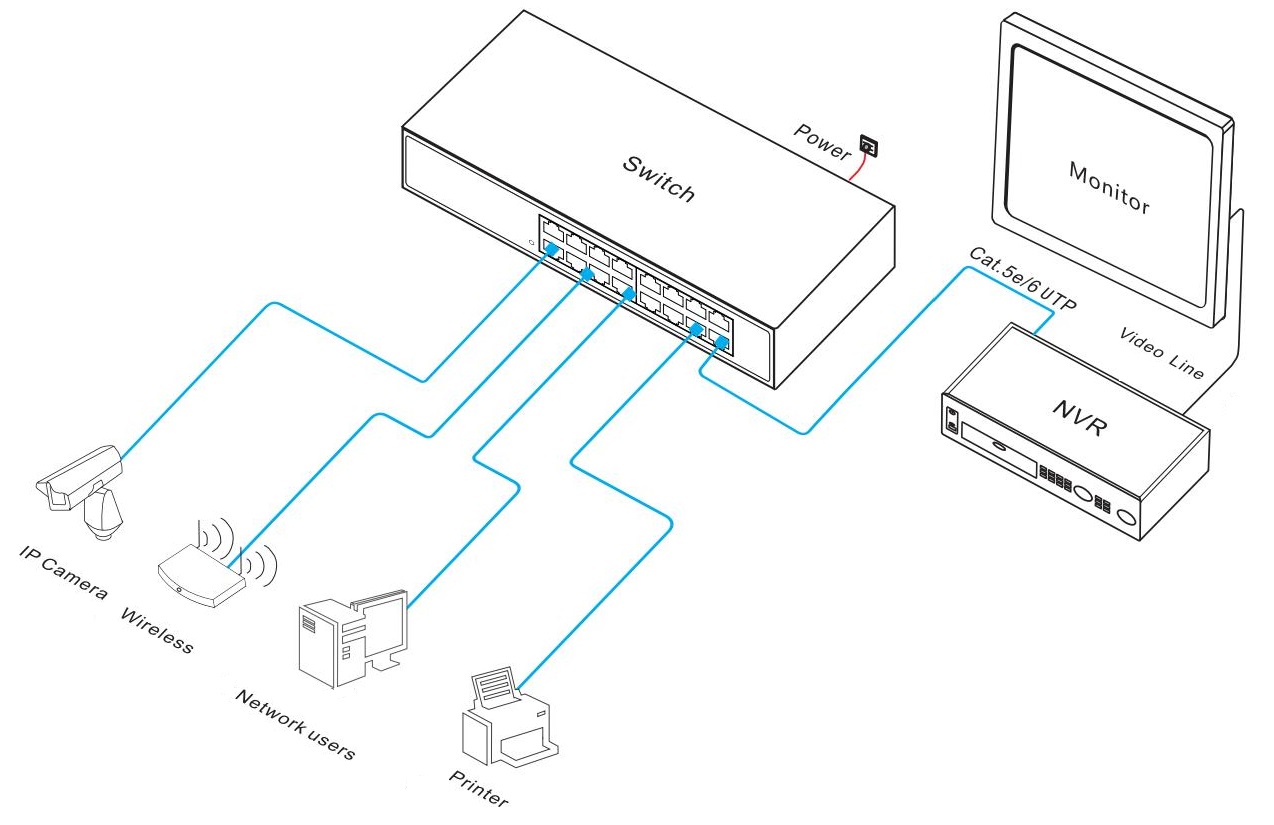

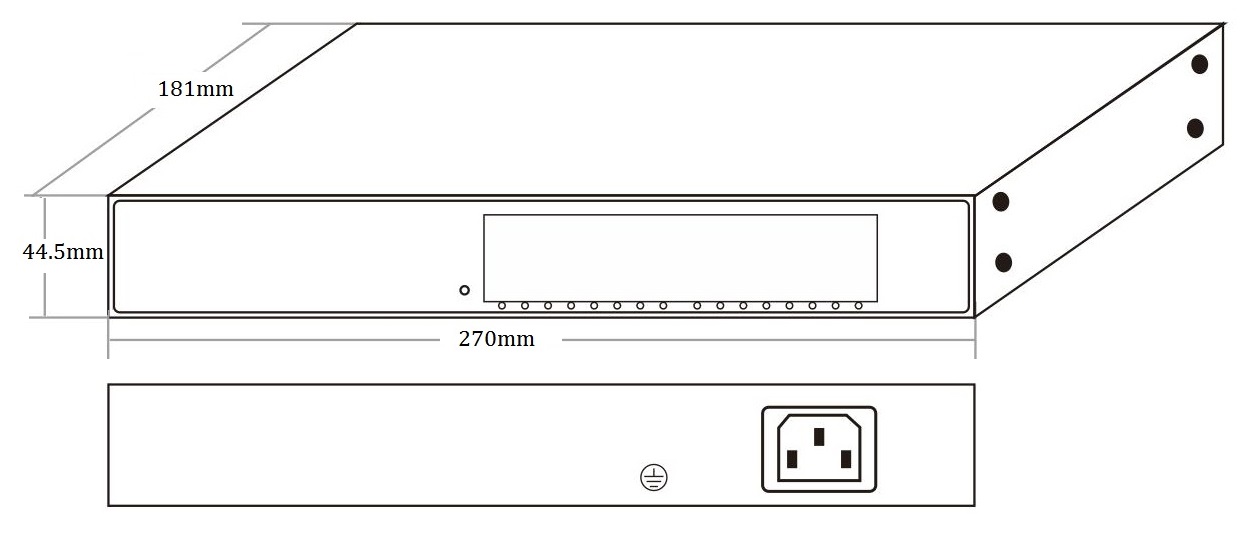

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Configure Power Supply |
|
ONV-H1016 |
Unmanaged Ethernet switch with 16*10/100M RJ45 ports. It built-in power supply and 1U/19" cabinet installation. |
20W |
|
ONV-H1024 |
Unmanaged Ethernet switch with 24*10/100M RJ45 ports. It built-in power supply and 1U/19" cabinet installation. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
16-port 10/100M Ethernet Switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kit |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-H1005S |
Plastic case unmanaged Ethernet switch with 5*10/100M RJ45 ports. External power supply. |
|
ONV-H1008S |
Plastic case unmanaged Ethernet switch with 8*10/100M RJ45 ports. External power supply. |
|
ONV-H3005S |
Plastic case unmanaged Ethernet switch with 5*10/100/1000M RJ45 ports. External power supply. |
|
ONV-H3008S |
Plastic case unmanaged Ethernet switch with 8*10/100/1000M RJ45 ports. External power supply. |
|
ONV-H3016 |
Unmanaged Ethernet switch with 16*10/100/1000M RJ45 ports. It built-in power supply and 1U/19" cabinet installation. |
|
ONV-H3024 |
Unmanaged Ethernet switch with 24*10/100/1000M RJ45 ports. It built-in power supply and 1U/19" cabinet installation. |
TECHNICAL SPECIFICATION
|
Model |
ONV-H1016 |
ONV-H1024 |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-TX RJ45 ports (Data) |
24*10/100Base-TX RJ45 ports (Data) |
|
Ethernet Port |
Port 1-16/1-24 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T,IEEE 802.3i 10Base-T,IEEE 802.3u 100Base-TX, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
7.2Gbps (non-blocking) |
8.8Gbps (non-blocking) |
|
Forwarding Rate @64byte |
2.38Mpps |
3.57Mpps |
|
MAC |
16K |
|
|
Buffer Memory |
4M |
|
|
Jumbo Frame |
10K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Green) |
|
|
Power Supply |
||
|
Total PWR / Input Voltage |
13W/ (AC100-240V) |
16W/ (AC100-240V) |
|
Power Consumption |
Standby<7W, Full Load<13W |
Standby<8W, Full Load<16W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 0.56A |
|
|
Physical Parameter |
||
|
Operation Temp/ Humidity |
-10~+55°C, 5%~90% RH Non condensing |
|
|
Storage Temp/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
|
|
Net /Gross Weight |
1.05kg /1.55kg |
1.1kg /1.6kg |
|
Installation |
Desktop, Wall mount, 1U/19 inch |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
