OVERVIEW

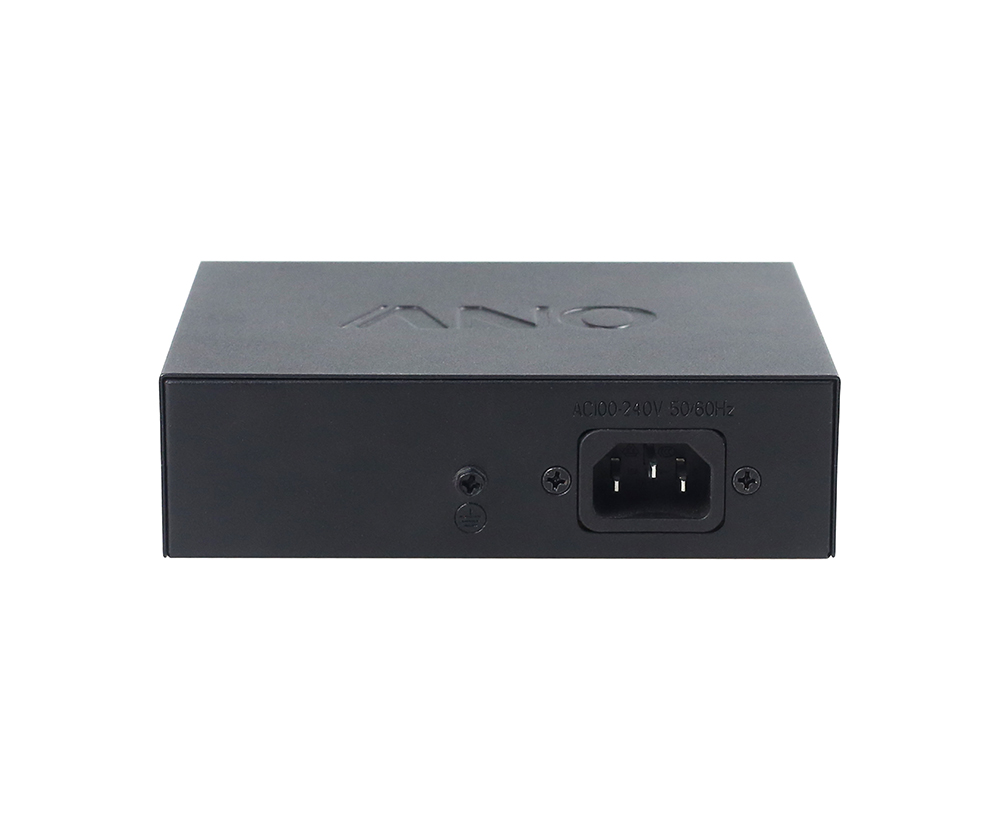

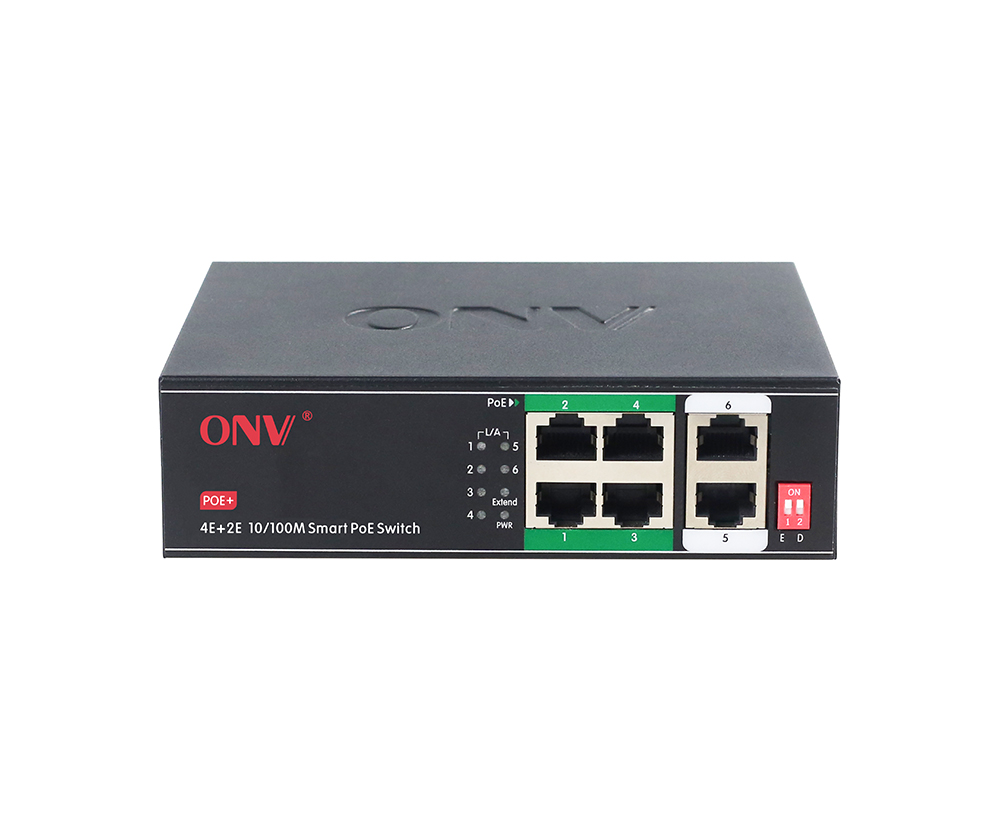

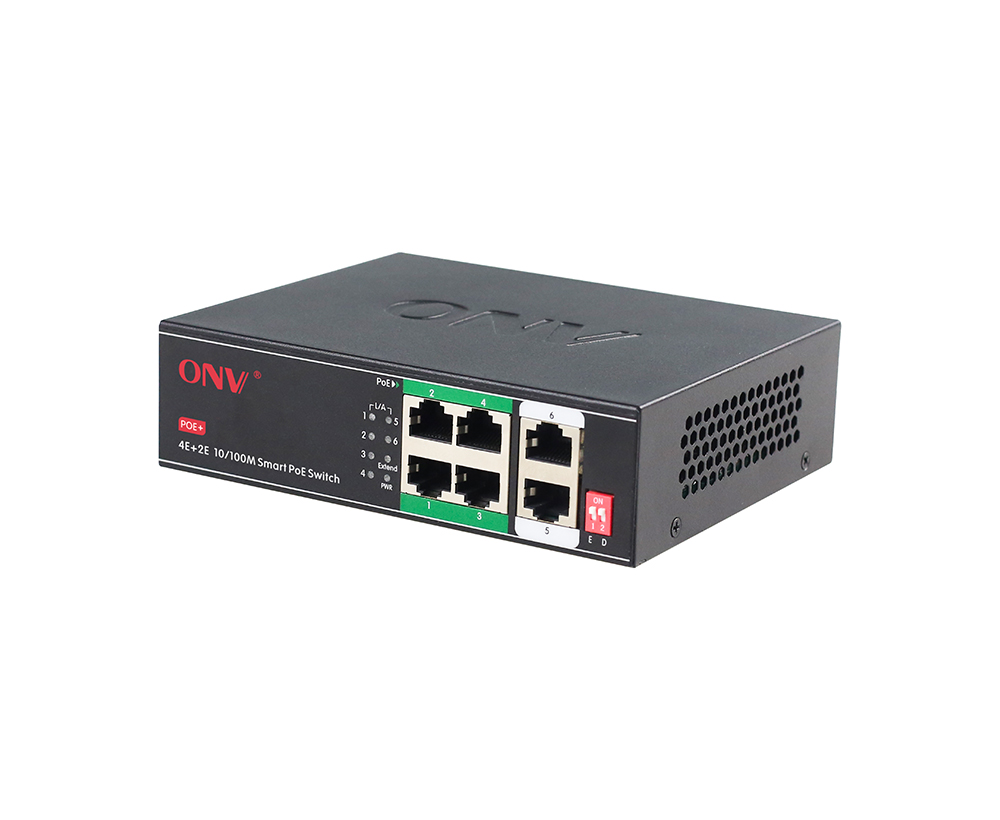

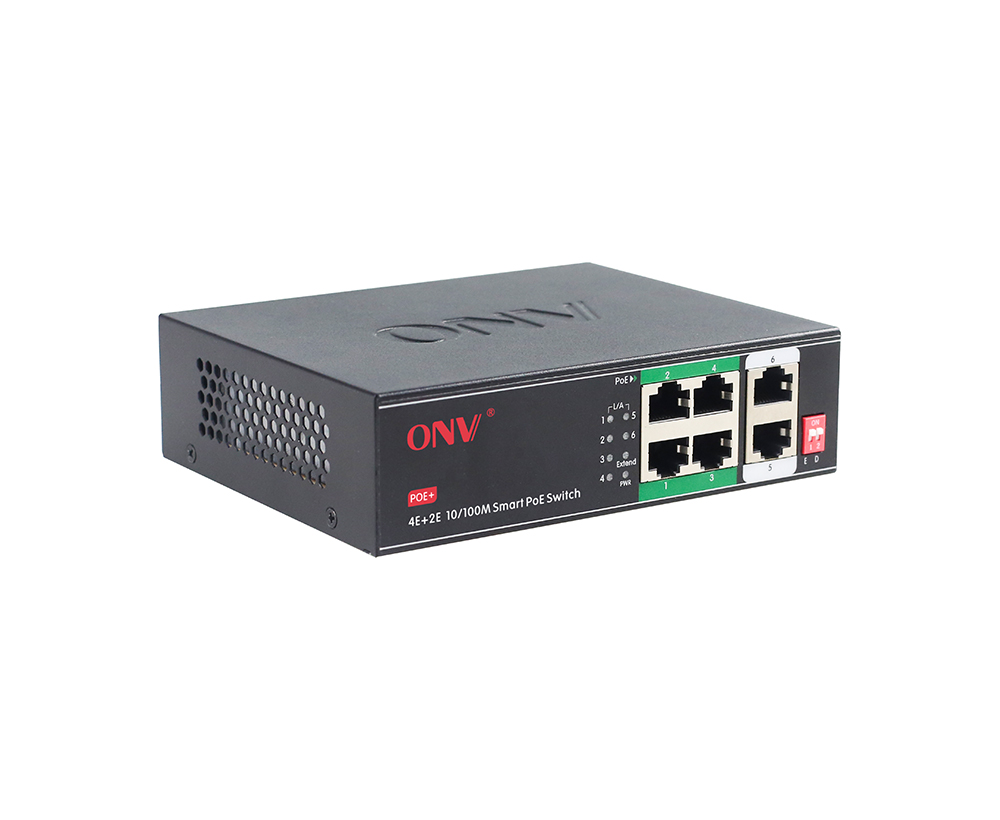

The ONV-H1064PLD is a 10/100M smart PoE switch independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 2*10/100Base-TX RJ45 ports. Port 1-4 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. It can support the watchdog function. When the port communication failure corresponds to the port PoE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom through network cable, to meet the network environment that needs high-density PoE power supply, suitable for hotels, campuses, parks, supermarkets, scenic spots, factory quarters and SMB small and medium-sized enterprises form a cost-effective network. Unmanaged mode, plug, and play, no configuration, easy to use.
FEATURE
10/100M access, uplink RJ45 port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ 6*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.
Smart PoE power supply
◇ 4*10/100Base-TX PoE ports can support the watchdog function, real-time detection of data communication status.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 4*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Innovative function
◇ Power supply priority mode: The PoE port power supply priority function is enabled by default, giving priority to the power output of the PoE port (port 1) to prevent overload.

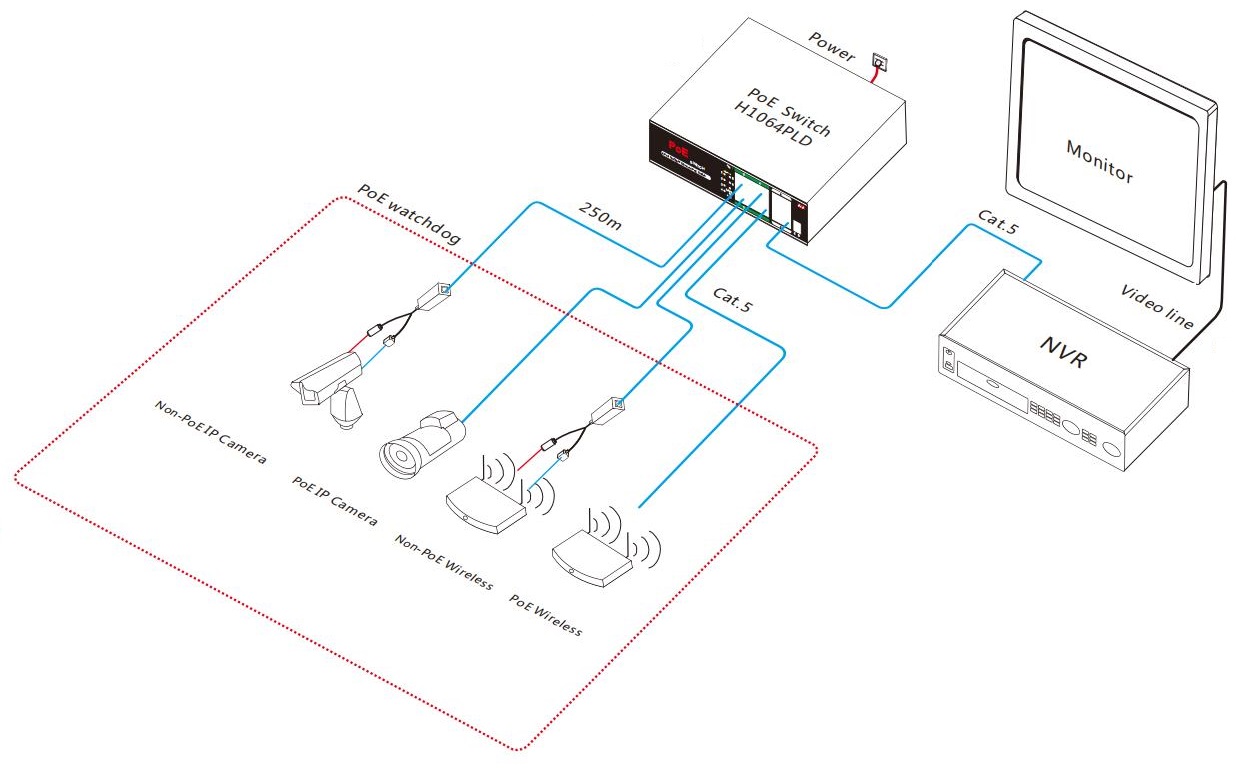

◇ PoE watchdog mode (D): When the switch status is ON (default off), port 1-4 can support the watchdog function and automatically detects the data communication status in real-time.
◇ long-distance transmission and VLAN mode (E): When the switch status is ON (default off), Port 1-4 rate is 10M/250 meters transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m, solve the problem of poor transmission caused by line aging.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to maintain.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

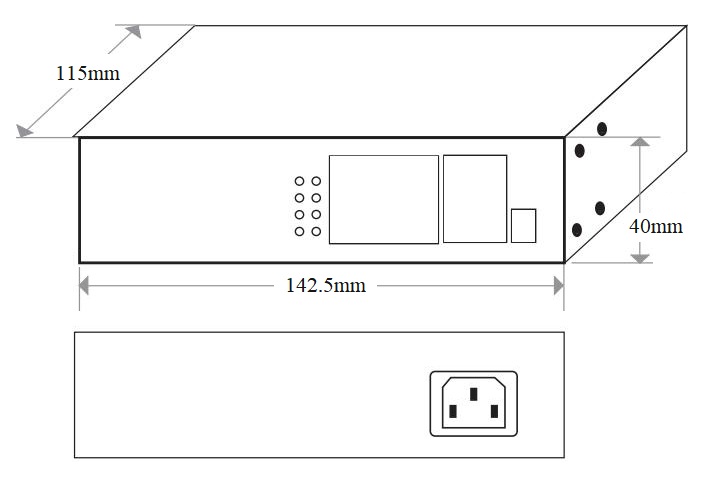

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H1064PLD |
Smart PoE switch with 6*10/100M RJ45 ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. Adjust function switch, port 1-4 can support 10M/250 meters transmission, VLAN isolation, and PoE watchdog function. Built-in power supply. |
65W |
|
ONV-H1108PLD |
Smart PoE switch with 10*10/100M RJ45 ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. Adjust function switch, port 1-8 can support 10M/250 meters transmission, VLAN isolation, and PoE watchdog function. Built-in power supply. |
120W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port 10/100M smart PoE switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H1064PLD |
ONV-H1108PLD |
|
Interface Characteristics |
||
|
Fixed Port |
4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-6/ 1-10 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
|
Function Switch
|
E: long-distance transmission and VLAN isolation (Default off) |
|
|
D: PoE watchdog mode: When the network fails, PoE watchdog will restart the power supply of the device and automatically repair the network communication. (Default off) |
||
|
Note: The function switch can control different functions, which can be enabled separately and simultaneously. |
||
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
1.6Gbps (non-blocking) |
2Gbps (non-blocking) |
|
Forwarding Rate @64byte |
0.89Mpps |
1.488Mpps |
|
MAC |
1K |
2K |
|
Buffer Memory |
768K |
1.25M |
|
Jumbo Frame |
1536byte |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Function switch: E/D (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1-4 |
Port 1-8 |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
|
Total PWR / Input Voltage |
65W/ (AC100-240V) |
120W/ (AC100-240V) |
|
Power Consumption |
Standby<3W, Full load<65W |
Standby<5W, Full load<120W |
|
Power Supply |
Built-in power supply, AC100-240V 50-60Hz, 1.1A |
Built-in power supply, AC100-240V 50-60Hz, 2.2A |
|
Physical Parameter |
||
|
Operation Temp/ Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage Temp/ Humidity |
-40°C~+80°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
142.5*115*40mm |
195*130*40mm |
|
Net /Gross Weight |
0.55kg/ 0.8kg |
0.75kg/ 1.0kg |
|
Installation |
Desktop, Wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
